Allen Products/Adaptive Technologies MM-3RDX-18
Indoor Speaker Ceiling Mount in Black


The Allen Products MM-3RDX-18 is an adjustable ceiling speaker mount that provides pan, tilt & roll adjustments.
Learn More
Our Price: $96.00
List Price: $120.00
You save 20%!
Write the first review.
Allen Products/Adaptive Technologies MM-3RDX-18
In Stock

Related Products

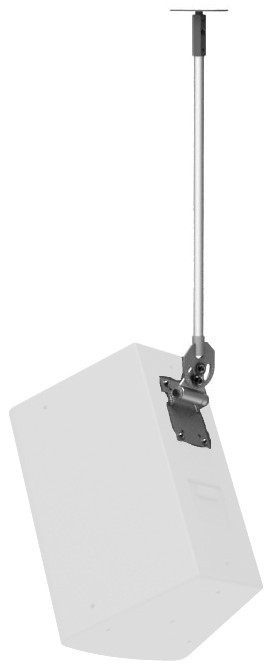

The Allen Products MM-3RDX-18 is an adjustable ceiling speaker mount that provides pan, tilt & roll adjustments. It supports and aims speakers that are equipped with either the 2 x 4-1/4 or the 2-3/4" x 5" 4-point mounting pattern.

This model aims speakers from overhead by way of a variety of tube extensions and ceiling attachments. Ceiling speakers achieve up to 360 degrees of horizontal pan angle, up to 180 degrees of tilt angle and 180 degrees of roll adjustment.

Tilt adjustments are made at the side of the speaker adapter plate, Pan-adjustments are made at the tube extension coupler and the roll feature is adjusted between the mount and the tube extension. The MM-3RDX-18 tube coupler provides a pathway for signal wire and a safety cable to pass through the tube extension to the terminal block. This makes for a clean, safe and predictable method for installing and aiming ceiling speakers.

Allen Products MM-3RDX-18 Features:

  • Indicators let installers set angles accurately
  • Independent pan, tilt & roll aiming gets perfect sound coverage
  • Adapts to standard schedule-40 1/2" pipe
  • Independent No drift, No memory Locking
  • Works for speakers with 2 x 4-1/4 and 2-3/4 x 5 Hole Patterns

Allen Products MM-3RDX-18 Specifications:

  • Material: Structural Steel Alloy
  • Finish: Powder Coat
  • Tilt Rotation: +/-90 degrees max
  • Pan Rotation: 360 degrees
  • Color: Black
  • WLL: 60 lbs (27.2 kg) max.
  • Design Factor: 7:1 ratio
  • Net Weight: 5 lbs (2.3 kg) each
  • Shipping Weight: 6 lbs (2.7 kg) each
