Product Overview

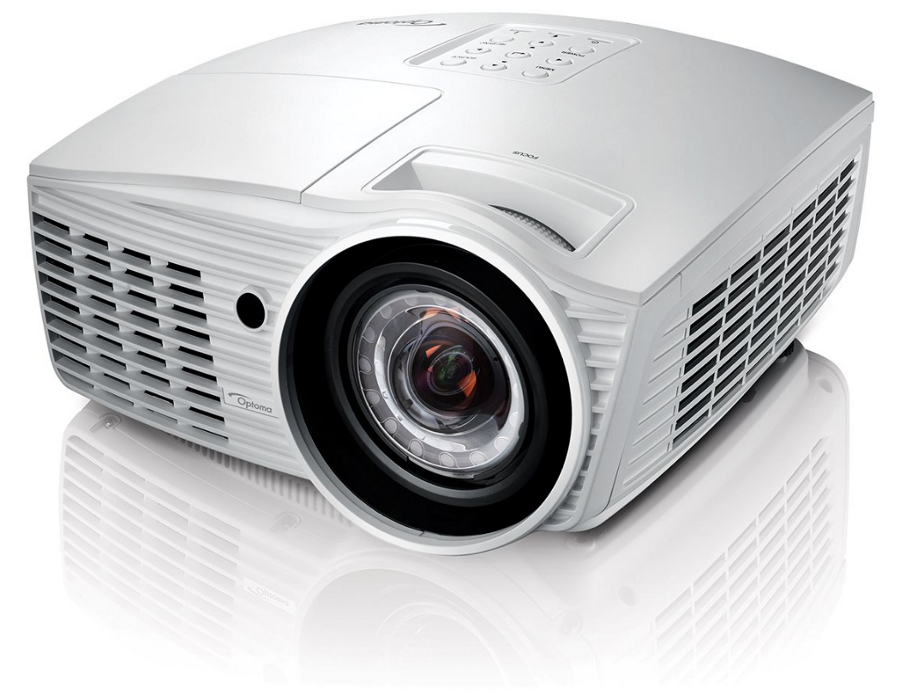

The EH415ST from Optoma is designed for delivering superior quality presentations in classrooms, small meeting rooms or training rooms. This full HD 1080p projector offers stunning image performance from a short distance. It also boasts a brightness rating of 3,500 ANSI lumens, which is ideal for use without dimming the lights.
The projector can be managed and monitored remotely with Crestron RoomView®, Telnet, Extron IP Link, AMX and PJ-Link, which allow almost all aspects of the EH415ST to be controlled across a network. The EH415ST’s impressively long lamp life (7,000hrs Eco+) and energy-saving features both contribute to a low overall cost of ownership.
Includes
- Carry bag
- Lens cap
- AC powercord
- VGA cable
- Remote control
- 2x AA batteries
- Quick Start Card
- CD User manual
Features
- Automatic Power Off to help save energy
- AV Mute suspends (dims) video output to conserve energy
- ECO+ to reduce power consumption by up to 70%
- Full 3D to display compatible 3D Blu-rays (DLP Link 3D Glasses Required)
- Full HD 1080p
- High Contrast with brighter whites and richer blacks so images come alive and text is crisp and clear
- Quick Resume
- Short Throw Projection to help give the best picture in a small environment
- Wireless presenting from a laptop, PC, or mobile device (Optional Extra, Sold Separately)
Specifications
- Technical
- Aspect Ratio: 16:9
- Audio: 10W Speaker
- Brightness: 3,500 Lumens
- Compatible Aspect Ratio: 16:9 Native, 4:3 Compatible
- Connections
- (2) HDMI
- VGA-In, VGA-Out
- Composite Video
- Stereo Audio-In, Stereo Audio-Out
- RCA Stereo Audio-In
- 12V Trigger
- 3D-VESA
- RJ45
- RS-232C and Mini-USB-B
- Contrast Ratio: 15,000:1
- Control Unit: RS232, RJ45
- Display Technology: Single 0.65" DC3 DMD DLP Technology by Texas Instruments
- Displayable Colors: 1.07 Billion
- Keystone Correction: ±20° Vertical
- Light Source Type: 280W
- Light Source Life: 7000 Hours (ECO+), 4000 Hours (ECO), 3000 Hours (Normal)
- Lens Shift: None
- Maximum Resolution: WUXGA (1920 x 1200)
- Native Resolution: Full HD 1080p (1920 x 1080)
- Noise Level: 35 dB Min
- Offset: 115% (5% Variance)
- On-Screen Display: Complete on-screen menu
- 27 Languages: English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Finnish, Greek, Danish, Norwegian, Polish, Russian, Simplified Chinese, Traditional Chinese, Korean, Arabic, Japanese, Thai, Hungarian, Czechoslovak, Turkish, Vietnamese, Farsi, Romanian, Indonesian
- Operating Temperature: Sea Level to 10,000 feet (@73°F); must manually switch to high-altitude mode at 5,000 feet and above
- Power Consumption: Max 310W (Normal), Min 230W (ECO+)
- Power Supply: AC input 100-240V, 50-60Hz, auto-Switching
- Projection Distance: 2.7' - 5.54'
- Projection Lens: F=2.87, F=7.28mm and focus
- Projection Method: Front, Rear, Ceiling Mount, Tabletop
- Projection Screen Size: 59.6" - 152.6"
- Remote Control: IR Remote Control
- Throw Ratio: 0.5 (Distance/Width), 5% Variance
- Uniformity: 80%
- Compatibility
- Computer Compatibility: WUXGA, HD, UXGA, SXGA+, WXGA+, WXGA, SXGA, XGA, SVGA, VGA
- Horizontal Scan Rate: 15.3 - 91.1 kHz
- Optional Wireless: Yes
- RoHS: Compliant
- Vertical Scan Rate: 24-85Hz (120Hz for 3D)
- Video Compatibility: NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
- Physical
- Dimensions (HxWxD): 4.88" x 11.25" x 10.43"
- Weight: 6.4 lbs.
- Security: Security Bar, Kensington Lock, Password Protection, Keypad Lock
NOTES:
- 1 Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
- 2 Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions.
- 3 +/- 5% tolerance
