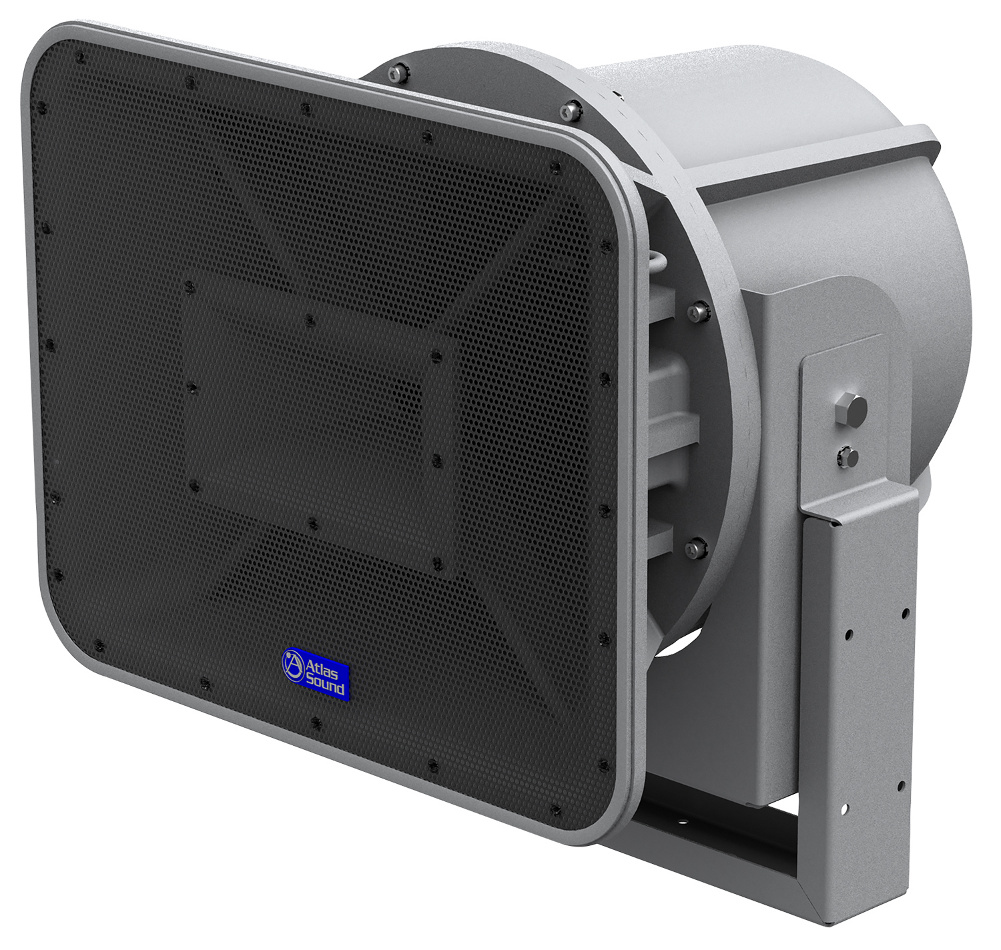

Atlas Sound AH94-8ST
8", 2-Way, Stadium Horn System, 90x40

OUR PART #:  AH94-8T-BSG

Atlas Sound model AH94-8ST "stadium horn" is ideal for directional sound distribution where full range reproduction...
Learn More
Our Price: $758.99
List Price: $947.99
You save 20%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound AH94-8ST
Qty:
In Stock
Similar Products

Atlas Sound model AH94-8ST "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required - for instance football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

Weather-resistant construction features of the AH94-8T-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly-perforated screen protects the 8" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

Atlas Sound AH94-8ST Includes:

  • Built-In, High Efficiency 60 Watt 70.7V Transformer
  • Heavy Duty Mounting Bracket - Allows for Easy Installation to Most Any Flat Surface
  • (3) Forged Eyebolts for Suspended Installation

Atlas Sound AH94-8ST Features:

  • 100 Watts Power Handling
  • Constant Directivity Design Offers Controlled Coverage of 90° Horizontal by 40° Vertical (2kHz Octave Band)
  • Driver Compliment Includes 8" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 90°H x 40°V HF Horn
  • Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Bottom of the Loudspeaker
  • Efficiency Rating of 101dB (1W/1m)
  • Maximum Output of 121dB (Rated Power @ 1M)

Atlas Sound AH94-8ST Specifications:

  • Power Taps: 7.5, 15, 30, and 60 Watts & 8Ohm
  • Frequency Response: 90Hz - 15kHz
  • Driver Type: 1" HF and 8" LF
  • Dispersion: 90° x 40°
  • Sensitivity: 101dB SPL
  • Width: 19.66" (49.93cm)
  • Weight: 63.00 lbs (28.58 kgs)
