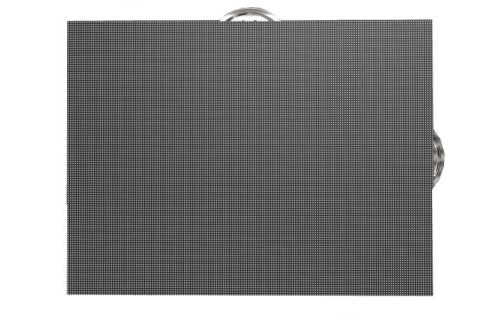

Vanguard LED Displays P1.5625
1.5625 Pitch, 15.74" x 11.8" Indoor HD Video Screen Display

OUR PART #:  AI-P01.5625

The Vanguard P1.5625 is an Indoor Super Slim Display with a brightness level of 1000 nits, contrast ratio of >= 2000:1.
Learn More

Call for info!

Similar Products

The Vanguard P1.5625 is an Indoor Super Slim Display with a brightness level of 1000 nits, contrast ratio of >= 2000:1.

Vanguard LED Display Technologies offers a full range of pixel pitches in its indoor LED video displays in high definition.

Vanguard LED video screens feature Novastar controllers and receiving cards, plus Meanwell Power supply.

Vanguard indoor cabinets are all die-cast aluminum. Hanging bars or permanent attachment points are available (sold separately-contact your Sales Professional for more information).

NOTE: For more information on how to order custom size Vanguard LED panel packages, please contact your Sales Pro.

Vanguard P1.5625 Specifications:

  • Cabinet Size: 15.75" x 11.81" x 3"
  • Brightness Adjustment 0-100%
  • Cabinet Resolution: 256 x 192 px
  • Color Temperature: 8000 ± 500K
  • Module Quantity: 4 pcs. for each cabinet
  • Operating Power Source: AC90-260V, 50-60Hz
  • Cabinet Weight: 12.35 lbs
  • Input Connector: DVI, HDMI
  • Cabinet Material: Die-casting Aluminum
  • Operation System: Windows
  • Brightness: 1000 Nits
  • Control Mode: Synchronization with PC
  • Contrast Ratio: >= 2000:1
  • Control Distance:
    • UTP CAT5E: 100m
    • Multi-Mode Fiber: 500m
    • Single-Mode Fiber: 15km
  • View Angle: 160° (horz.)/ 160° (vert.)
  • Stock Temperature: -40°F ~ +185°F (-40°C ~ +85°C)
  • Gray Scale: 14 to 16-bits
  • Operating Temperature: -4°F ~ +122°F (-20°C ~ +50°C)
  • Maximum Power Consumption: 120W per cabinet
  • Operating Humidity: 10-90% RH
  • Average Power Consumption: 36W per cabinet
  • Lifetime: 50,000 Hours
  • Minimum View Distance: 5ft
  • Protection Rating: IP31
  • Drive IC: TLC59283
  • Assembly Precision Of PCB: <= 1mm
  • Refresh Rate: >2000Hz
  • Out Of Control Rate: 0.01%
