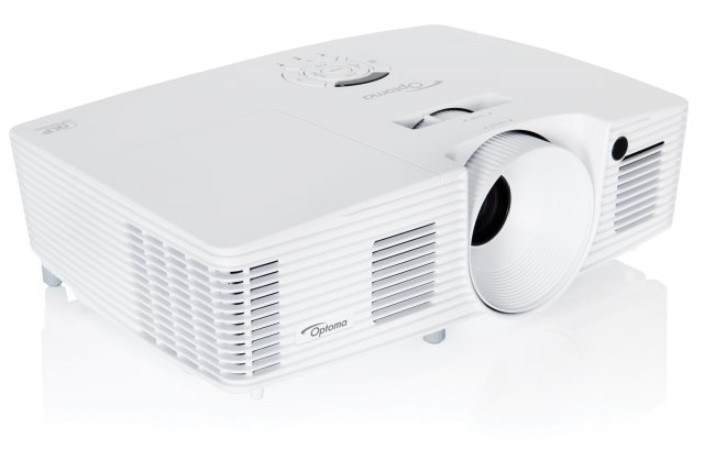

Optoma X402
4200 Lumens XGA DLP Projector

OUR PART #:  X402

The Optoma X402 Projector projects bright, vibrant widescreen presentations any time of day.
Learn More
Our Price: $799.00
List Price: $1,499.00
You save 47%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Optoma X402
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
Projection Calculator

The Optoma X402 Projector projects bright, vibrant widescreen presentations any time of day. Designed for meeting rooms and classrooms, the X402 boasts a long lamp life and energy-saving features which provide a low overall cost of ownership.

It has a built-in speaker, networking capabilities, Full 3D technology, and can be easily connected via a HDMI cable, giving a clear projected image with sound. This lightweight projector can be installed or taken on the move in the handy carry bag for off-site meetings.


  • Bright projection – 4200 ANSI lumens
  • XGA resolution, 20,000:1 contrast ratio, HDMI input
  • Crestron RoomView® – RJ45 control and monitoring
  • Lightweight and portable, carry bag included

Optoma X402 Includes:

  • Carry bag
  • AC power cord
  • VGA cable
  • Remote control
  • Battery
  • Quick-start card
  • CD user manual

Optoma X402 Features:

  • High Contrast
    Add more depth to your image with a highcontrast projector; with brighter whites and ultra-rich blacks, images comealive and text appears crisp and clear - ideal for business and education applications.
  • Full 3D
    Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles. Support for 144Hz rapid refresh rate provides ultra-smooth flicker free images.
  • Integrated Speaker
    The built-in speaker offers excellent audio support. Easy to set up without the need for costly external speakers
  • Eco+
    Eco+ technology brings together high contrast, improved lamp life and energy saving features that are easy to use while reducing power consumption.
    • Energy Saving
      Using the specially designed lamp modes, you can reduce the power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while lowering the total cost of ownership and reducing maintenance.
    • Auto Power Off
      There may be instances when the projector is left running when not in use. To help save energy, the "Auto Power Off" feature automatically turns off the projector after a set period of time if it is not being used.
    • Eco AV Mute
      Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen by blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.
  • Long Lamp Life
    Reduce the number of lamp changes with lamp life of up to 7000 hours.
  • Remote Mouse & Laser
    Keep your audience’s attention focused on the right things using the simple, yet powerful remote with USB mouse control and built in laser pointer.
  • Networking and Control
    Featuring a wide range of options you can control and monitor the projector remotely.
    • RS232 - Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
    • AMX Compatibility - Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
    • LAN Control
      • Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer.
      • Schedule the projectors to power on/off.
      • Control and alter the projector settings using the simple web browser.
      • Emergency text broadcast capabilities for urgent or important announcements.
  • Amazing Colors
    For vibrant, natural looking images,Optoma projectors incorporate BrilliantColor™ multi-color processing technology.
  • Quick Resume
    This feature allows the projector to be instantly powered on again if it's accidentally switched off.
  • Wireless Presenting (Optional-Sold Separately-Contact your SalesProfessional for more information)
    Making presentations couldn't be easier using the optional wireless features of the WPS Wireless Adapter (sold separately) - you can connect and display presentations wirelessly from a laptop, PC, or mobile device.

Optoma X402 Specifications:

  • Display Technology: Single 0.55” XGA DC3 DMD chip DLP® Technology by Texas Instruments
  • Native Resolution: XGA 1024 x 768
  • Brightness¹: (Bright Mode) 4200 ANSI Lumens
  • Contrast: 20,000:1
  • Noise Level (Eco mode): 31dB
  • Weight: approx. 5.7 lbs. (2.57 kg)
  • I/O Connectors: HDMI (1.4a 3D support), 2 x VGA (YPbPr/RGB), S-Video, Composite, 2 x Audio In 3.5mm, Audio Out 3.5mm, VGA Out, RS232, USBmouse/service, RJ45
  • Computer Compatibility: UXGA, SXGA, XGA, SVGA, VGA, Mac
  • Video Compatibility: PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J,3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25MHz, 4.4MHz, 480i/p, 576i/p,720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)
  • Displayable Colors: 1073.4 Million
  • Projection Lens: F/2.4~2.66; f=18.2~21.9mm, 1.2x Manual Zoom
  • Throw Ratio²: 1.6 - 1.92:1
  • Projection Screen Size: 0.78m– 7.79m (30.8” to 307”) Diagonal 4:3
  • Projection Distance: 1.2 - 12m
  • Zoom Type: 1.2x Manual
  • Aspect Ratio: 4:3 Native, 16:9 Compatible
  • Offset: 115%
  • Horizontal Scan Rate: 15.3 - 91.1kHz
  • Vertical Scan Rate: 24 - 85Hz
  • Lamp Type: 260W
  • Lamp Life³ Eco+/Dynamic/Eco/Bright: 7000/5500/5000/3000 (hrs.)
  • Keystone Correction: ± 40° Vertical
  • Dimensions (W x D x H): approx. 12.5" x 9" x 4.1" (315mm x 224mm x102mm)
  • Power Supply: 100-240V, 50-60Hz
  • Power Consumption: 306W Bright mode / 257W Eco mode (< 0.5WStandby)
  • Operating Conditions: 5° C - 40° C, Max. Humidity 85%, Max. Altitude 3000m
  • Uniformity: 80%
  • Security: Security bar, Kensington lock, password protection
  • RoHS: Compliant
  • 3D Support: Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKYin the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
  • 3D Compatibility: Side-by-Side:1080i50 / 60, 720p50 / 60
  • Frame-pack: 1080p24, 720p50 / 60
  • Over-Under: 1080p24, 720p50 / 60
  • Speaker: 10
  • On-Screen Display:
    • 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Turkish, Romanian, Farsi, and Arabic

¹ Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp-based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
² +/-5% tolerance
³ Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions
