Product Overview

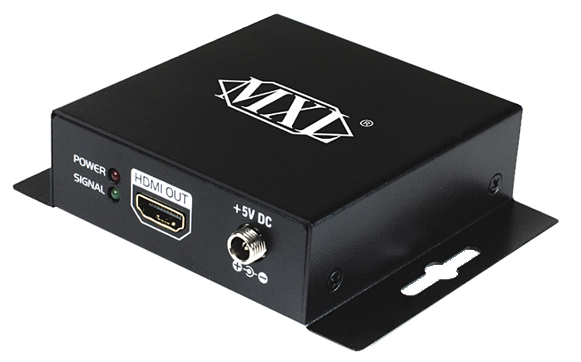

The VAC-12SH 3G/HD/SD-SDI to HDMI Converter with Loop-out from Marshall Electronics provides a cost-effective way to convert 3G/HD/SD-SDI signal to an HDMI compliant format. The conversion between SDI and HDMI is purely digital and guarantees no loss of audio and video signal. Embedded audio is supported.* The VAC-12SH also provides two (SDI and HDMI) low jitter, re-clocked outputs for daisy chains or multiple monitors.
Marshall Electronics VAC-12SH Includes:
- VAC-12SH Converter
- 5V/2A power adapter
- User Manual
Marshall Electronics VAC-12SH Features:
- Supported high-definition (HD) formats:
- NTSC 525 @59.94, PAL 625 @50, 720p @50,720p @59.94, 720p @60, 1080i @50, 1080i @59.94, 1080i @60, 1080p @23.97,1080p @24, 1080p @25, 1080p @29.97, 1080p @30, 1080p @50, 1080p @59.94, 1080p @60
- Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835Gbps, 270 Mbps
- Auto 3G/HD/SD-SDI detection
- Support HDMI Deep Color
- One SDI compliant output and one HDMI compliant output
Marshall Electronics VAC-12SH Specifications:
- Technical:
- SDI standards: 3G-SDI & HD-SDI & SD-SDI
- Auto HD/SD-SDI detection: Yes
- SDI Data Rate: [2.97Gpbs & 2.975/1.001Gbps]
- Video support:
- [3G] - 1080p50/59.94/60 (4:2:2)
- [HD] - 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @23.98/24/25/29.97/30Hz
- [SD] - NTSC @59.94Hz, PAL @50Hz
- Input signal:
- [SD-SDI] SMPTE 259M
- [HD-SDI] SMPTE 292M, 296M
- [3G-SDI] SMPTE-424M
- Output signal: 1x SDI + 1x HDMI
- Output impedance: 75 ohms
- Eye pattern characteristics: Extra low alignment jitter 0.05UI at HD
- Cable equalization:
- [3G-SDI] up to 90m (300ft)
- [HD-SDI] up to 150m (500ft)
- [SD-SDI] up to 300m (1000ft)
- Audio support: Yes
- Input: 1x BNC [SDI]
- Output: 1x HDMI + 1x BNC [SDI]
- BNC connector: 75 ohm inter-locked socket
- HDMI connector: Type A [19-pin female]
- Mechanical:
- Housing: Metal enclosure
- Dimensions [L x W x H]: 79 x 84 x 27mm [3.1” x 3.3” x 1.2”]
- Weight:
- Model: [TX] – 250g [8.8oz]
- Package: 780g [1.7 lbs]
- Power supply: 5V 2A DC with Locking Power Connector
- Power consumption: 3 Watts [max]
- Operation temperature: 0~40°C [32~104°F]
- Storage temperature: -20~60°C [-4~140°F]
- Relative humidity: 20~90% RH [no condensation]
Note:
*SDI supports 48KHz. Dolby True HD and DTS HD are not supported in SDI.
