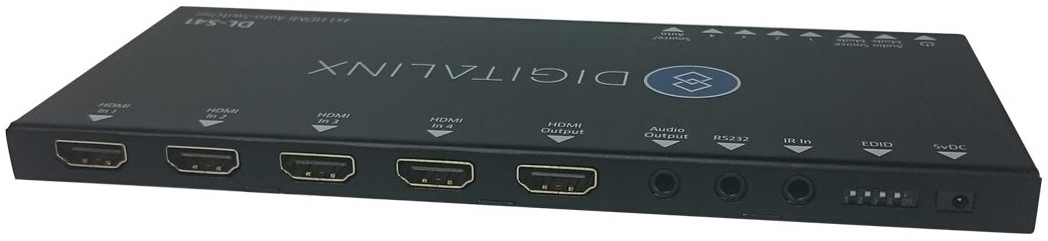

Intelix DL-S41
Digitalinx 4x1 HDMI Auto-Switcher

OUR PART #:  DL-S41

The Intelix Digitalinx DL-S41 is a small format auto-switcher with four HDMI video inputs and one HDMI output.
Learn More
Our Price: $188.96
List Price: $209.95
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix DL-S41
Qty:
In Stock

Similar Products

The Intelix Digitalinx DL-S41 is a small format auto-switcher with four HDMI video inputs and one HDMI output. This switcher supports HDMI video resolutions up to 4K (3840x2160) at 30 Hz, 1080p 3D, and multichannel audio. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The DL-S41 will de-embed digital stereo audio to provide an analog audio source for an existing audio system. This switcher also features audio return channel (ARC) support through the analog audio output.

When in auto-switch mode, the DL-S41 will switch to an HDMI input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input. The DL-S41 may also be controlled via RS232, IR with the included remote, or from the source button on the front of the switcher.

Intelix Digitalinx DL-S41 Includes:

  • Digitalinx DL-S41 4x1 HDMI auto-switcher
  • Installation guide
  • Power supply
  • AC adapters (AU, EU, UK, and US)
  • IR receiver
  • Rubber feet,
  • 4x Mounting "L" brackets
  • 4x Mounting screws

Intelix Digitalinx DL-S41 Features:

  • Auto-switch or manual switch between four HDMI inputs
  • One HDMI and one 3.5 mm (ARC & audio de-embedding) output
  • Front panel, IR and RS232 control
  • UHD, 1080p, 3D compatible; HDCP compliant
  • Applications:
    • HDMI signal distribution to multiple displays
    • Digital Signage and retail display management
    • Restaurant and bar, office wait areas

Intelix Digitalinx DL-S41 Specifications:

  • I/O Connections:
    • HDMI Inputs: Four (4) HDMI Type A Receptacle
    • HDMI Output: One (1) HDMI Type A Receptacle
    • Audio Output: One (1) 3.5mm TRS Jack
    • IR Input: One (1) 3.5mm TRS Jack
    • RS232: One (1) 3.5mm TRS Jack
    • EDID Selection: Four (4) Position DIP Switch
    • 5v DC Power: One (1) 2.35 mm Outside Diameter, 0.7 mm Inside Diameter Barrel (EIAJ-1)
    • Source/Auto Button: One (1) 3 mm Microswitch
    • Firmware: One (1) Micro USB Type B Receptacle
  • Supported Audio and Video
    • Maximum Video Compatibility: Deep Color 48/36/30/24 Bit at 1080p, 3D, and 2160p/30
    • Video Compliance: HDMI, HDCP, CEC (Consumer Electronics Control), and ARC (Audio Return Channel)
    • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Input DDC Signal: 5.0 volts p-p (TTL)
    • Input Video Signal: 0.5 to 1.0 volts p-p
    • IR Carrier Frequency Range: 33-55kHz at 5 volts
    • RS232 Baud Rate: 9600 baud
  • Chassis and Environmental:
    • Enclosure: Painted aluminum
    • Dimensions: 7.6" W x 3.15" H x 0.43" D (193 x 80 x 11 mm)
    • Shipping Weight: 1.8 lb (0.82 kg)
    • Operating Temperature:
      • Environment: +32° to +104° F (0° to +40° C)
      • Chassis:
        • Sender: 88° F (31° C)
        • Receiver: 100° F (38° C)
    • Operating Humidity (Environment): 20% to 90%, Non-condensing
    • Storage Temperature (Environment): +14° to +140° F (-10° to +60° C)
    • Storage Humidity (Environment): 20% to 90%, Non-condensing
  • Power, ESD, and Regulatory:
    • Maximum Power Consumption: 5 watts
    • Power Supply Input Voltage: 100-240v AC at 50/60 Hz at 0.5 A
    • Power Supply Output Rating: 5v DC at 1 A
    • ESD Protection: 15kV
    • Device Regulatory: CE, RoHS
    • Power Supply Regulatory: CE, RoHS, TUV, UL, SGS
  • Standard Warranty: 2 Years
  • Diagnostic Indicators: Power, Audio Mode, Source Mode, Selected Input
