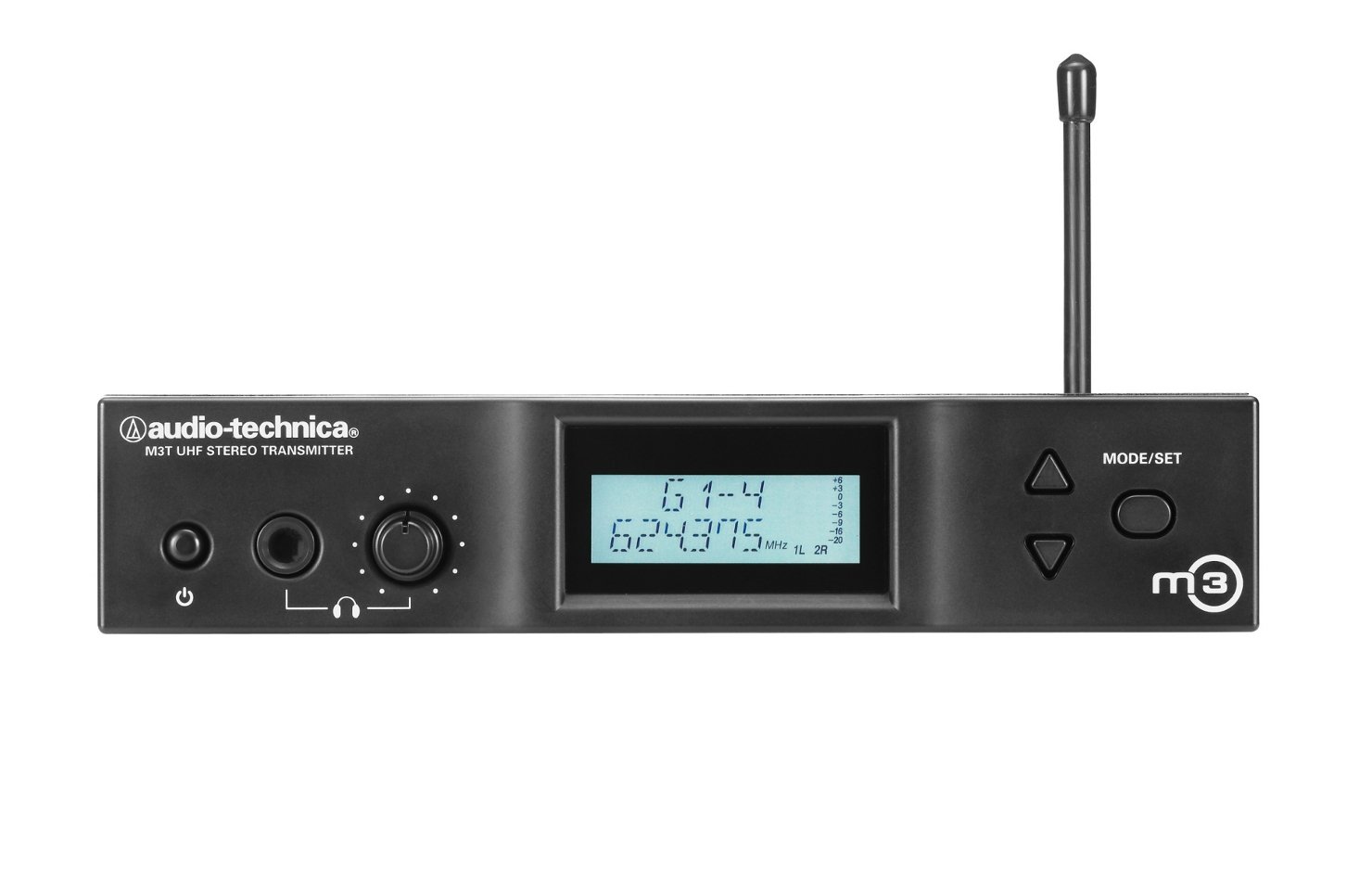

Audio-Technica M3TL M3T Stereo Transmitter

The M3TL is the stereo transmitter unit of Audio-Technica's advanced M3 IEM system. The M3 system offers a full range of professional in-ear monitoring features, with a choice of 1321 UHF channels and easy-to-read LCD information displays on both transmitter and receiver for setting preferences.

The stereo monitor system is equipped with Audio-Technica’s versatile Personal Mix Control, which allows volume and mix control of two independent signals on stage, via controls on the M3R stereo body-pack receiver. While up to 16 complete M3 systems may be used simultaneously, any number of M3R stereo receivers can operate on the same frequency with a single M3T stereo transmitter. The Audio-Technica M3T Stereo Transmitter is equipped with two XLR/¼” combo input connectors into which users can connect line-level inputs (from a mixing console, for example). The M3T also offers a headphone output that allows you to monitor transmitter input signals directly.

Audio-Technica M3T Transmitter Includes:

• AC adapter (country-dependent)
• Rack mount adapters
• Flexible antenna

Audio-Technica M3T Transmitter Features:

• Offers LCD display and 1321 user-selectable frequencies

Audio-Technica M3T Transmitter Specifications:

• RF Power Output: 10 mW/50 mW (switchable), 50 ohms
  • Limited to 10 mW within 863 MHz to 865 MHz
• Spurious Emissions: Following federal and national regulations
• Input Connections:
  • XLRF-type/6.3 mm stereo (1/4") combination connector
  • Pin 1 and Sleeve: Ground
  • Pin 2 and Tip: Hot
  • Pin 3 and Ring: Cold
• Maximum Input Level:
  • XLRF-type/6.3 mm stereo, (1/4") balanced: +26 dBu
  • 6.3 mm (1/4") mono, unbalanced: +26 dBu
• Loop Output Connector: XLRM-type connector
  • Pin 1: Ground
  • Pin 2: Hot
  • Pin 3: Cold
• Power Requirement: 12-18V DC, 600 mA
• Headphone Output Connector: 6.3 mm (1/4") TRS stereo phone jack
• Headphone Output Power: 120 mW at 32 ohms
• Antenna Connector: BNC, 50 ohms
• Dimensions:
  • 210.0 mm (8.30") W x
  • 132.0 mm (5.20") D x
  • 44.0 mm (1.70") H
• Net Weight: 930 g (32.8 oz), without accessories
