Altman 3.5Q
575W 3.5" 18° Standard Quartz Ellipsoidal in White with Medium 2-Pin Socket


The Altman 3.5Q ellipsoidal produces a high intensity sharp or soft edged beam and uses high-intensity tungsten halogen lamps.
Learn More
Our Price: $256.80
List Price: $321.00
You save 20%!
Write the first review.
Altman 3.5Q
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Altman 3.5Q ellipsoidal produces a high intensity sharp or soft edged beam and uses high-intensity tungsten halogen lamps. Four adjustable integral stainless steel framing shutters provide beam shaping ability and the pattern slot and holder provide the ability to project visual images. While primarily designed for theatre and studio applications, the 3.5Q Series is also useful in displays, show windows, museums and nightclubs where precision controlled accenting is desirable.

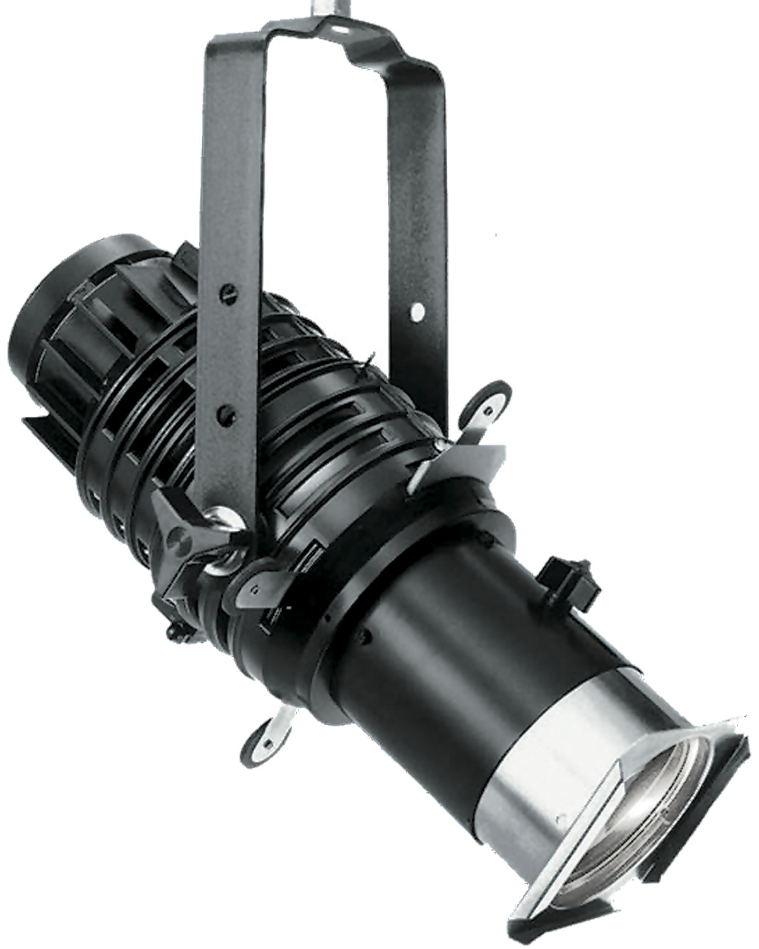

NOTE: Shown above in black. Comes in WHITE.

Altman 3.5Q Ellipsoidal Features:

  • Compatible with the Altman Smart-Track® Lighting System
  • Heat resisting plano convex lenses
  • Aluminum die cast and sheet metal construction
  • Axially mounted medium two-pin socket
  • Double flatted specular Alzak aluminum reflector
  • Tool free interchangeable lens barrels
  • Three 36" Teflon lead wires
  • Up to 25' of Hi-Temp rubber cable optional
  • Color frame and safety cable with spring clip included
  • U.L. and c.U.L. listed for 500 watts
  • Made in the USA

Altman 3.5Q Ellipsoidal Specifications:

  • Housing: Die-cast aluminum and sheet steel construction.
  • Materials: Construction employs all corrosion-resistant materials and hardware.
  • Yoke: Rigid flat steel with dual handles.
  • Reflector: Alzak aluminum, ellipsoidal design.
  • Lenses: Pyrex glass.
  • Socket: Altman BPS-1200 medium two-pin, axially mounted with blinder/heat shield, tool-free relamping.
  • Rating: 120/240 volts AC/DC operation, 4.8/2.4 amps, 575 watts maximum.
  • Cable: 36" Teflon leads encased in black fiberglass sleeving. Hi-Temp rubber cable optional, up to 25'.
  • Shutters: Four provided, stainless steel, fully adjustable. Handles provided with heat-resistant knobs.
  • Access Door: Hinged, removable without tools, allowing access to lens and reflector.
  • Focusing Lamp: Fully adjustable.
  • Focusing Fixture: Lens movement adjustable with locking heat-resistant knob.
  • Accessories: Accepts drop-in pattern holder and standard 4-1/8" accessories.
  • Color Frame Size: 4-1/8" x 4-1/8"
  • Pattern Size: Accepts Metal Patterns 2-5/16"
  • Diameter with 1-7/8" Diameter Image Size
  • Finish: White
  • Weight: Approx. 9 lbs (4.8 kg)
