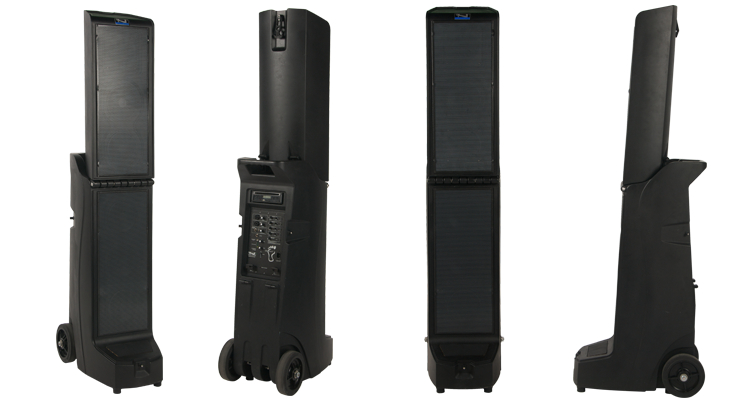

Anchor BIG-8000U2
Bigfoot Portable Line Array System with 2 Wireless Receivers and Bluetooth Connectivity

OUR PART #:  BIG-8000U2

Anchor Audio's Bigfoot® Line Array is the biggest, most recent, and most powerful Portable Sound System on the market.
Learn More
Our Price: $3,000.00
List Price: $3,750.00
You save 20%!
Write the first review.
Anchor BIG-8000U2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Anchor Audio's Bigfoot® Line Array is the biggest, most recent, and most powerful Portable Sound System on the market. Designed to cover a football field, this thunderous battery powered system is up to any challenge. With a line array consisting of five 8" neodymium speakers and one high efficiency neodymium compression driver, this system packs a punch - yet easily sets up in seconds.

It also has standard built-in Bluetooth and an optional built-in CD/MP3 combo player to easily connect to anything you'll need for an all-inclusive sound coverage.

Anchor Audio BIG-8000U2 Features:

  • Reach Crowds of 5,000+
  • 400 Watts AC/DC
  • Five 8” Neodymium Woofers
  • One High Efficiency Neodymium Compression Driver
  • True AC/DC - 110/220V Power Supply
  • Two Universal Microphone Input Jacks
  • 2 Built-in UHF Wireless with 16 User Selectable Channels
  • Operates 6-8 Hours on a Single Charge
  • Comes with Standard Built-in Bluetooth
  • Optional Built-In CD/MP3 Combo Player
  • 3.5mm AUX Line Input
  • Patented, Durable all-in-one Portable Design
  • Contoured Handle Grip and Heavy-Duty 8” Wheels for Easy Transport
  • USB Charging Port for MP3/Phone
  • High-Efficiency Class D Amplifier
  • Battery Level Indicator
  • No Stand Needed
  • UV Resistant Case
  • User Replaceable Batteries

UHF Wireless:

  • WH-8000: Wireless handheld microphone/transmitter (540 - 570 MHz)
  • WB-8000: Wireless body-pack transmitter (540 - 570 MHz); requires hands-free microphone (sold separately)
    • Compatible Microphones Include:
      • Over-the-Ear/EM-TA4F
      • Lapel/LM-60
      • Collar/CM-60
      • Headband/HBM-TA4F

Anchor Audio BIG-8000U2 Specifications:

  • Rated Power Output: 400 Watts AC/DC
  • Max SPL @ Rated Power: 130 dB @ 1 meter
  • Battery: Three 12 V rechargeable, 9.0 Ah
  • Full recharge: approx 8 hrs
  • Frequency Response: 100 Hz – 15 kHz ±3 dB
  • Line Output (post fader): isolated, 600 Ohms, 1/4” phone
  • AC Power Reqs.: 100 – 240 VAC, 50/60 Hz, 300W max
  • USB Power Out: 5V 500mA
  • Dimensions Closed (HWD): 42.2” x 24” x 15.3” (107 x 61 x 39 cm)
  • Dimensions Opened (HWD): 68.9” x 24” x 15.3” (175 x 61 x 39 cm)
  • Weight: 90 lbs / 41 Kg
  • Microphone Inputs: Lo-Z (1 kOhm), balanced, XLR
  • 12 VDC condenser mic (phantom) power
  • Hi-Z (10 KOhm), unbalanced, 1/4” phone
  • Line In: balanced, 1/4” & 1/8” stereo
  • Sensitivity For Rated Output
  • Lo-Z Microphone: -52 dBV (2.5 mVrms)
  • Hi-Z Microphone: -43 dBV (7.5 mVrms)
  • Auxiliary (line): -14 dBV (200 mVrms)

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
