Leslie Speakers G Pedal
Rotary Speaker Guitar Pedal

OUR PART #:  LESLIE-G-PEDAL

Designed with the same digital Leslie circuitry of the best-selling Hammond "Sk" stage keyboards, and continuing the legacy started with the original Leslie pedal...
Learn More
Our Price: $329.00
List Price: $400.00
You save 18%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Leslie Speakers G Pedal
Qty:
In Stock

Similar Products

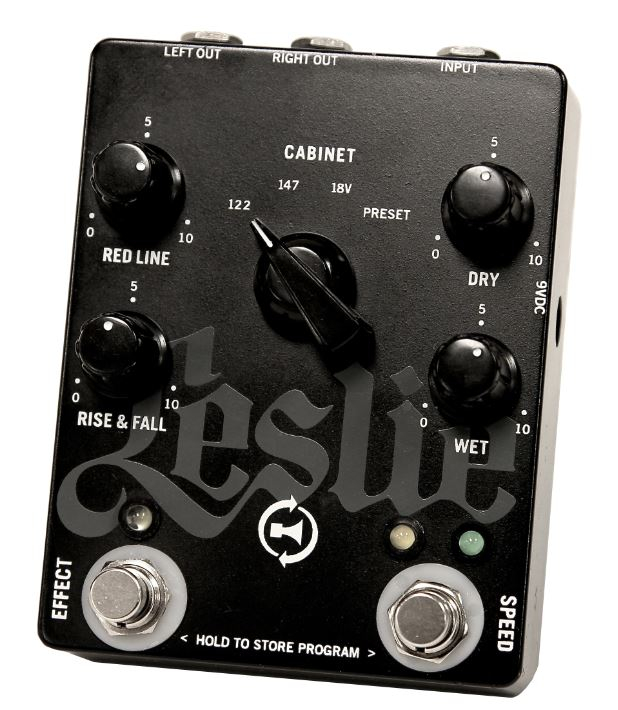

Designed with the same digital Leslie circuitry of the best-selling Hammond "Sk" stage keyboards, and continuing the legacy started with the original Leslie pedal, the Leslie G Pedal has a smaller footprint than the original to facilitate an easier fit into guitarist's pedalboards.

The G Pedal features three classic hot-rodded cabinet styles for the player to choose - Models 122, 147, and the 18v (the Leslie model designation of the original vibratone single rotary speaker). A rotary pot allows the simultaneous adjustment of the rise and fall times ("ramp") of the virtual upper & lower rotors. Distance of the virtual microphone is optimized for each cabinet's model, as is the "mix" of upper and lower levels. Overdrive is also optimized for each cabinet selected.

The G Pedal also features "Dry" and "Wet" controls, which are a new addition from the original Leslie Pedal. These controls determine the volume of the effected sound sent to the output, while the "Dry" permits the straight or unaffected sound of the guitar or instrument attached and blended with the effected tone, when more clarity is desired.

A "Red Line" control provides precise adjustment of the overall "fast" speed of the virtual rotors. A further new function allows the user to store a preset of their own design, recalled by the cabinet selector.
Two stomp switches are provided, with one toggling the effect on/off, and the other controller the slow/fast speed of the Leslie effect. When the effect is "off" the input is true bypass. The input jack is 1/4" TRS, accepting mono or stereo signal with left and right stereo output jacks.

Leslie Speakers G Pedal Specifications:

  • Controls:
    • Rise/Fall
    • Fast/Slow
    • Cabinet Selector
    • Wet & Dry Mix
    • Bypass & Red Line
  • Cabinet Selector: Models 122A, 147A, 18V, P& RESET
  • Connections: Input, Power 9VDC, Left/Right Outputs
  • Signal Processing: 32-bit 150 MIPs DSP
  • A/D & D/A Conversion: 24-bit 115dB
  • Input Sensitivity: 0dBV (low gain) and -6dBV (high gain)
  • Input Impedance: 500 kOhms nominal
  • Output Impedance: 150 Ohms nominal
  • Output Level: +6dBV
  • Dimensions (WxDxH): 4-3/4" x 7-5/16" x 2-1/4"
  • Weight: 1.5 lbs
  • Current Draw: 300 mA max
  • AC Adapter: 007-AD-MP1 (Universal, UL and RoHS approved)
