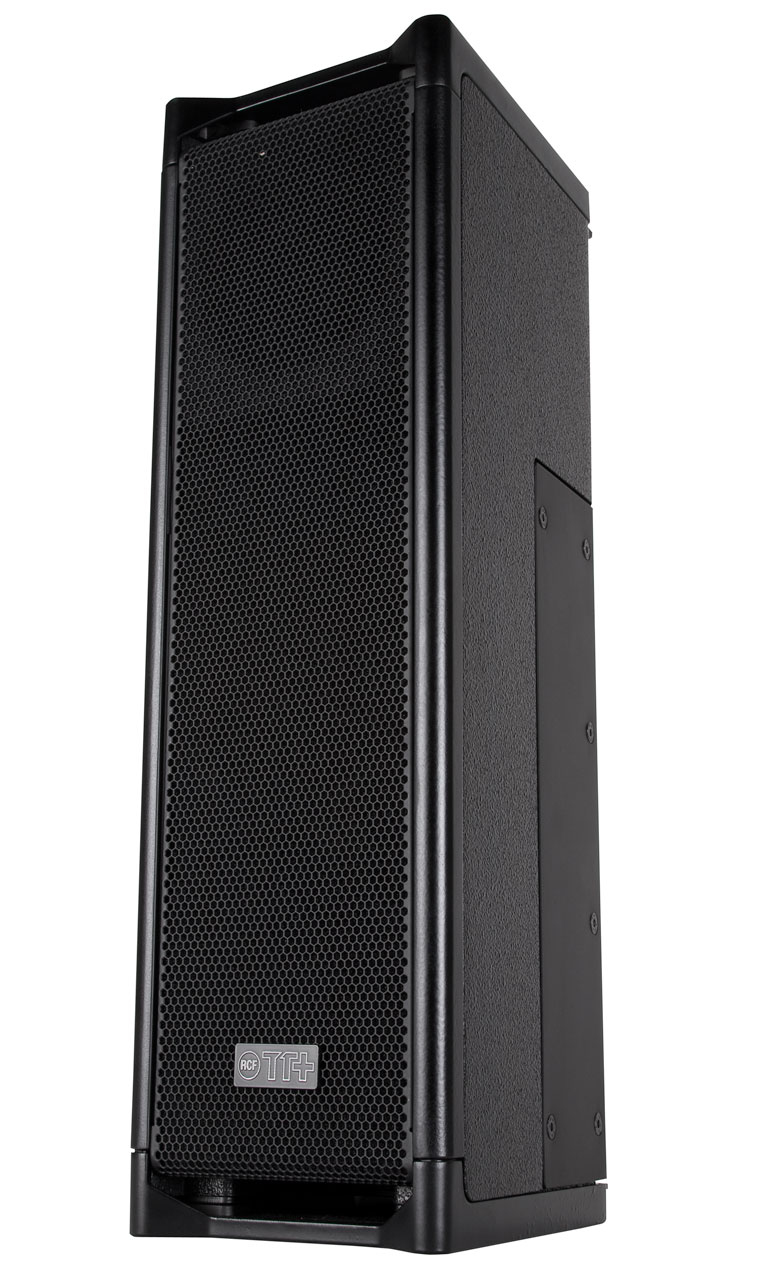

RCF TT52-A Dual 5" Active Ultra-Compact High-Output Coaxial Speaker 300W, RDNet Option

The RCF TT052-A is an extremely compact, active loudspeaker specifically designed for indoor applications where the audio beam must be directed towards specific zones. It is equipped with two 5” neodymium woofers and a 1” compression driver. Thanks to its constant directivity horn and high volume output, the RCF TT052-A can be used to carry sound in critical environments - for instance concert halls, theatres, monitoring, distributed sound, and multimedia applications.

Features:

• 300W Class D amplifier
• Heavy duty multi-functional cabinet
• 2 x 5" low distortion woofer
• 1" ne compression driver, 1.5" v.c.
• DSP processing
• Wall mount EQ, High pass EQ
• RDNet ready

Specifications:

• Acoustic Specifications
  • Frequency Response (@-3dB): 65Hz - 20000Hz
  • Max SPL: 123dB
  • Horizontal coverage angle: Conical 90°
  • Vertical coverage angle: Conical 90°
  • Compression Driver: 1" neo, 1.5" v.c.
  • Woofer: 2 x 5" woofer, 1.2" voice coil
• Input/Output Section
  • Input signal: Bal/unbal
  • Input connectors: XLR, RDNet ready
  • Output connectors: XLR
  • Input sensitivity: -2dBu / +10dBu
• Processor Section
  • Crossover frequencies: 1500Hz
  • Protections: Thermal, Excursion, HF
  • Limiter: Soft limiter
  • Controls: DSP controlled
• Amplifier Specifications
  • Total power: 300W RMS
  • High frequencies: D/150W RMS
  • Low frequencies: D/150W RMS
  • Cooling: Convection
  • Connections: Powercon in/out
• Cabinet
  • Cabinet Material: Baltic birch
  • Hardware: Multi-functional
  • Handles: Top, bottom
  • Color: Black
• Physical Specifications
  • Height: 493/19.40 mm/inch
  • Width: 150/5.90 mm/inch
  • Depth: 190/7.48 mm/inch
  • Net Weight: 11/24,25 kg/lbs
