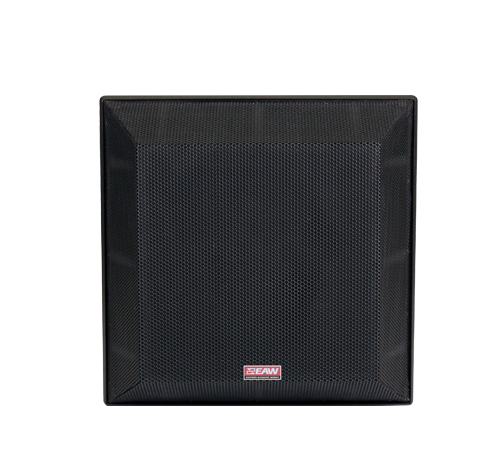

EAW-Eastern Acoustic Wrks QX566i
3-Way, 60x60 Speaker #2035529, Black

OUR PART #:  QX566I-BLACK

EAW's QX Series speakers deliver high output, broadband pattern control and exceptional fidelity for a wide range of permanently installations.
Learn More
Our Price: $4,841.00
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks QX566i
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

EAW's QX Series speakers deliver high output, broadband pattern control and exceptional fidelity for a wide range of permanently installations. Its high output level makes it appropriate for long throws in arenas and stadiums, or for high-energy applications like live music venues or dance clubs. Its broadband pattern control lets it tame hostile acoustical environments, like cathedrals or highly reverberant public spaces. In addition, its fidelity pleases the most critical listeners in concert halls and performing arts centers.

The EAW QX566i loads an ultra-efficient mid/high compression driver with a 60° (h) x 60° (v) constant directivity horn. Four Phase Aligned™ 12-inch low frequency transducers arranged as vertical and horizontal pairs leverage beneficial interaction, based on their spacing to extend pattern control well into the low-frequency range.

Because the four low-frequency transducers surround the coaxial mid/high compression driver symmetrically in both the horizontal and vertical planes, response across the full frequency spectrum appears to originate from a single point in space. This facilitates an idealized summation of the three frequency sections, eliminating the design anomalies that physically offset the sections. This idealized coherence applies in both the horizontal and vertical planes throughout the coverage area.

EAW QX566i Features:

  • High output, bi-amplified, three-way performance
  • Broadband pattern control
  • Ultra-efficient, coaxial MF/HF compression driver
  • Four Phase Aligned™ 12-in cone transducers (vertical and horizontal pairs)
  • Installation flexibility
  • Six Year Warranty

EAW QX566i Specifications:

  • Configuration
    • Subsystem:
      • Transducer:
        • LF 4x12in. cone
        • MF 1x2in. exit, 3.5 in. compression driver
        • HF 1x2in. exit, 1.75in compression driver
      • Loading:
        • LF: Phase-Aligned™
        • MF: Horn-loaded
        • HF: Horn-loaded
      • Amplifier Channels: Bi-amp (Passive MF/HF) LF, MF/HF
      • External Signal Processing: DSP w/EAW Focusing
  • Performance:
    • Operating Range (-10 dB, Hz): 55-20k
  • Axial Sensitivity ( 1W@1m, dB SPL):
    • LF: 103
    • Passive MF/HF: 112
  • Power Handling/Impedance (Watts @ Ohms):
    • LF: 2000 @ 2 (single amp), 1000 @ 4 (2x pairs)
    • Passive MF/HF: 175 @ 8
  • Calculated Maximum Output Peak (db SPL):
    • LF: 142
    • Passive MF/HF: 140
  • Calculated Maximum Output Long Term (dB SPL):
    • LF: 136
    • Passive MF/HF: 134
  • Nominal Coverage (degrees):
    • Horizontal: 60
    • Vertical: 60
    • Powering: Bi-amplified (passive MF/HF)
  • Dimensions (inches/millimeters):
    • Height (front): 27.96/710
    • Height (rear): 15.87/403
    • Width (front): 27.96/710
    • Width (rear): 15.87/403
    • Depth: 23.82/605
    • Trap. Angle (degrees per side): 19.9
    • Trap. Angle (degrees top and bottom): 19.9
  • Weights (pounds/kilograms):
    • Net: 134/61
    • Shipping: 149/68
