Product Overview

Sennheiser’s MobileConnect app provides innovative live audio streaming to mobile devices for the first time. The universal system uses a wi-fi connection to stream lip-sync audio content to the user’s smartphone, which has an app that instantly converts it into a mobile receiver.

MobileConnect can be quickly and easily installed almost anywhere - theatres, museums, stadiums, or companies - and is also cost-efficient in use. It consists of a streaming server and a specific wireless LAN router. The system provides a closed network that users can connect to from their smartphone. The selected audio data are transferred to the device via the MobileConnect multi-channel app, thus enabling users to play the content conveniently through headphones. The user-friendliness of the system is not limited to the front end: MobileConnect can be installed in a few easy steps and is ready for use immediately.

The app opens up new opportunities in the field of digital signage as well as in many areas of assistive listening. System houses and integrators can therefore not only offer their existing customers an innovative solution for familiar application scenarios, but they can also acquire completely new customers.

As an innovative streaming-based technology, MobileConnect enables customers to use their own smartphones to receive audio contents in the future. They know how to use their own device best, and they merely have to download the free MobileConnect app to their smartphone. Event organizers are no longer faced with the cost of providing, renting and maintaining the audio devices, though cost-efficiency is not the only feature that makes MobileConnect interesting.

Features

  • Assistive listening in theatres
  • max. no of connected streaming clients: 100 (Firmware 4.1.1 or higher)
  • The provision of an audio track for silent screens in airport waiting lounges

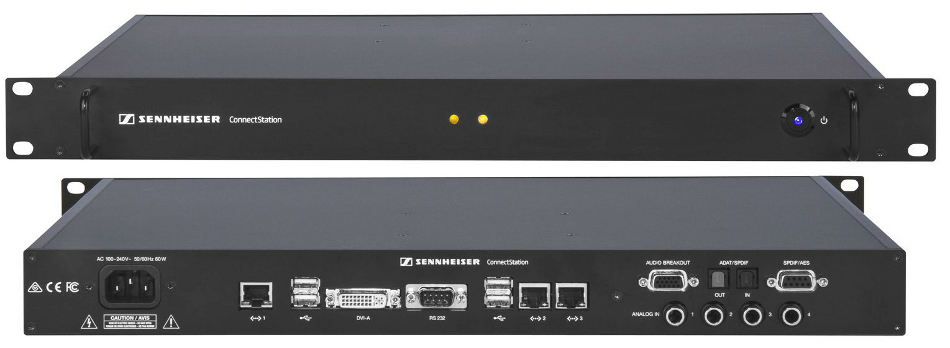

  • ConnectStation CS1-M:
  • Simultaneous interpreting for public performances:
    • Dimensions (W x H x D): 48.3 x 24.0 x 4.4 cm (19.0" x 9.5" x 1.7")
    • Enables customers to upgrade and expand their range of possibilities
    • Weight: 2.9kg (6.39lbs)
  • MobileConnect innovative streaming solution offers universal application.
    • Power supply: 100 - 240VAC, 50/60Hz, max. 600mA
    • Power: 60W nominal
    • Can be used in situations in which audio transmission has until now been impossible or only very limited.
    • Operating temperature range: +5°C - +45°C (+41°F - +113°F)
    • Storage temperature range: -20°C - +75°C (-4°F - +167°F)
    • Operating humidity range: 10% - 90% @ 25°C, non-condensing
    • Storage humidity range: 5% - 95% @ 25°C, non-condensing
  • ANALOG IN:
    • Resolution: AD 24-bit
    • Sample rate: 48kHz
    • Signal-to-noise ratio (SNR): 113dB RMS, unweighted, 116dbA @ 44.1kHz
    • THD: < -110dB, < 0.00032%
    • THD+N: < -104dB, < 0.00063%
    • Crosstalk: > 110dB
    • Frequency response: AD @ 44.1kHz, -0.5dB, 5Hz to 21.5kHz
    • Input: 4 x ¼" TRS jack, servo balanced
    • Input impedance: 10kΩ
    • Input sensitivity: Low gain, +4dBu, -10dBV
    • Input level:
    • for 0 dBFS @ low gain +19dBu@ +4dBu, +13dBu@ -10dBV, +2dBV
    • for 0 dBFS @ low gain +19dBu
    • @ +4dBu, +13dBu
    • @ -10dBV, +2dBV
  • AUDIO BREAKOUT: 15-pin analog breakout cable
    • Resolution: AD 24-bit
    • Signal-to-noise ratio (SNR): 109dB RMS, unweighted, 111dbA @ 44.1kHz
    • THD: @ -3dBFS, -101dB, < 0.001%
    • THD+N: @ -3dBFS, -99dB, < 0.0015%
    • Crosstalk: 108dB
    • Frequency response: AD @ 44.1kHz, -0.5dB, 5Hz - 21.5kHz
    • Input line: phono unbalanced
    • Input impedance: 10kΩ
    • Input sensitivity: Low gain, +4dBu, -10dBV
    • Input level for 0dBFS:
    • @ low gain +19dBu@ +4 dBu +13dBu@ -10 dBV +2dBV
    • @ low gain +19dBu
    • @ +4 dBu +13dBu
    • @ -10 dBV +2dBV
  • SPDIF/AES: 9-pin digital breakout cable with two RCA connectors as coaxial SPDIF I/O
    • Inputs: 1 x RCA (XLR), transformer balanced, galvanically isolated, according to AES3-1992
    • Outputs: not in use
    • High-sensitivity input stage (< 0.3Vpp)
    • SPDIF compatible IEC60958
    • Lock range: 27 to 200kHz
    • Jitter: < 0.025UI (4.4ns @ 44.1kHz)
    • Jitter (when synced to input signal): < 1ns
    • Jitter suppression: > 30dB (2.4kHz)
  • AES3-1992
    • Connection: XLR balanced (not included in delivery)
    • Impedance: 110Ω
    • Level: 0.2V up to 5Vss
    • IEC 60958
    • Connection: RCA
    • Impedance: 75Ω
    • Level: 0.2V up to 5Vss
  • ADAT/SPDIF
    • Input: TOSLINK
    • Output: not in use
    • Standard: 8 channels, 24-bit, up to 48kHz
  • Sample split (S/MUX): 4 channels, 24-bit, 96-kHz
    • Lock range: 31.5 - 50kHz
    • Jitter (when synced to input signal): < 1ns
    • Jitter suppression: > 30dB (2.4kHz)
    • for 0 dBFS @ low gain +19dBu
    • @ +4dBu, +13dBu
    • @ -10dBV, +2dBV
    • @ low gain +19dBu
    • @ +4 dBu +13dBu
    • @ -10 dBV +2dBV
