Intelix DIGI-1X4B-1H
1x4 HDMI to HDBaseT Distribution Amplifier

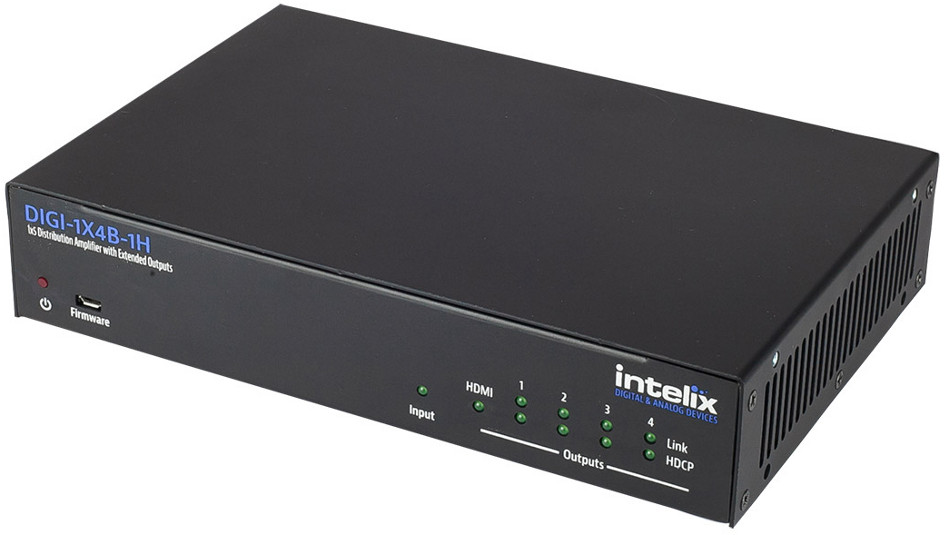

The Intelix DIGI-1X4B-1H is an HDMI distribution amp with four HDBaseT outputs and one HDMI Loop output.
Learn More
Our Price: $899.96
List Price: $999.95
You save 10%!
Write the first review.
Intelix DIGI-1X4B-1H
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Intelix DIGI-1X4B-1H is an HDMI distribution amp with four HDBaseT outputs and one HDMI Loop output. It is designed for any system that requires an HDMI signal to be distributed to multiple remote locations.

The DIGI-1X4B-1H features HDBaseT twisted pair extension for four outputs, allowing the same signal to be routed to a remote destination with an HDBaseT receiver. The HDBaseT ports support up to 4Kx2K HDMI video with audio, wide-band IR tunneling (for IR control of source or displays), RS232 tunneling, and HDCP up to 60 meters (196 feet). Each HDBaseT output port supplies power to the attached extender, eliminating the need for a power supply at the display end.

The DIGI-1X4B-1H is designed with an HDMI loop out which is intended to cascade to additional units, allowing for system expansion for larger systems. A unique control design allows the RS232 port to be addressed and cascaded, allowing control commands to be discretely directed to the RS232 port of any attached HDBaseT receiver. This design allows third party control systems to reduce the number of COM ports required, thus reducing hardware costs.

The DIGI-1X4B-1H is HDMI compatible and supports up to 4kx2k resolutions, Deep Color, and full 3D capabilities. The DA features advanced EDID and HDCP handling, including EDID copy and preset modes.

Intelix DIGI-1X4B-1H Includes:

  • DIGI-1X4B-1H HDMI to HDBaseT distribution amplifier
  • Installation Guide
  • Power Supply
  • US IEC Power Cable
  • IR Loop Cable
  • RS232 Control Cable
  • RS232 Loop Cable
  • Shelf Feet with Screws
  • Mounting Rails with Screws

Intelix DIGI-1X4B-1H Features:

  • One HDMI input
  • Four HDBaseT outputs (up to 60 m [195 ft]) with PoE and control
  • One HDMI output for confidence monitor or cascading
  • Cascade 10 units together for total output of 40
  • 1080p, 4Kx2K compatible; HDCP compliant
  • Diagnostic LEDs; built-in surge protection
  • Bidirectional Wideband IR and RS232 routing for discrete display control
  • Includes international power supply with locking connector

Intelix DIGI-1X4B-1H Specifications:

  • I/O Connections:
    • HDMI Input: One (1) HDMI Type A Receptacle Connector
    • HDBaseT Outputs: Four (4) Shielded RJ45 Female
    • HDMI Output: One (1) HDMI Type A Receptacle Connector
    • RS232 In: One (1) 3-Pole/3.5mm Euroblock
    • RS232 Loop: One (1) 3-Pole/3.5mm Euroblock
    • IR Input: One (1) 3.5mm TRS
    • IR Loop: One (1) 3.5mm TRS
    • IR Output: One (1) 3.5mm TS
    • 24V DC Power: One (1) Locking Barrel (5.5 mm OD, 2.1 mm ID)
  • Supported Audio, Video, and Control:
    • Maximum Video Compatibility at 60 m: Deep Color 36/30/24 Bit at 1080p
    • Maximum Video Compatibility at 35 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k
    • Maximum Passive HDMI Cable Distanc:e 5 m (16.4 ft)
    • Video Complianc:e HDMI and HDCP
    • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Input DDC Signal: 5.0 volts p-p (TTL)
    • Input Video Signal: 0.5 to 1.0 volts p-p
    • RS232 Baud Rate: 9600, 19200, 38400, and 115200 baud
    • IR Carrier Frequency Range: 33-55kHz at 5 volts
  • HDBaseT Signal Characteristics:
    • Maximum Distance: 60 m
    • Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
    • Bandwidth: 10.2 Gbps
    • Gain: 0 dB – 10 dB at 100 MHz
    • Signal to Noise Ratio (SNR): > 70 dB at 100 MHz over 100 m
    • Return Loss: < -30 dB at 5 KHz
    • Total Harmonic Distortion (THD): < 0.005% at 1 KHz
    • Min-Max Signal Level: < 0.3 V – 1.45 Vp-p
    • Differential Phase Error: ±10° at 135 MHz over 100 m
  • Chassis and Environmental
    • Enclosure: Painted Aluminum
    • Dimensions: 1.73" x 8.66" x 5.83" (44 x 220 x 148 mm) – 1/2 RU
    • Shipping Weight: 1.48 lbs (0.67 kg)
    • Operating Temperature: 0° to +48° C (+32° to +120° F)
    • Operating Humidity: 10% to 90%, Non-condensing
    • Storage Temperature: -20° to +70° C (+14° to +158° F)
    • Storage Humidity: 10% to 85%, Non-condensing
  • Power, ESD, and Regulatory:
    • Power Supply Input: 100V-240VAC / 50-60 Hz / 1.7A
    • Power Supply Output: 24VDC / 2.5A
    • Power Consumption: 60 watts (max)
    • ESD Protection: 15kV
    • Product Regulatory: FCC, CE, RoHS
    • Power Supply Regulatory: FCC, CE, RoHS, UL, TUV, CCC
  • Other:
    • Standard Warranty: 2 years
    • Diagnostic Indicators: Power LED, HDMI Input LED, HDMI Output LED, HDBaseT Link LEDs, HDBaseT HDCP LEDs
    • Optional Accessories: DIGIB-EMT (IR Emitter) and DIGIB-EYE (IR Receiver)
    • Compatible Receivers:
      • AV and PoE: DIGI-HD60-R
      • AV and Control: FLX-BI4
      • AV, PoE and Control: DIGI-HDX-R, DIGI-HD60C-R
