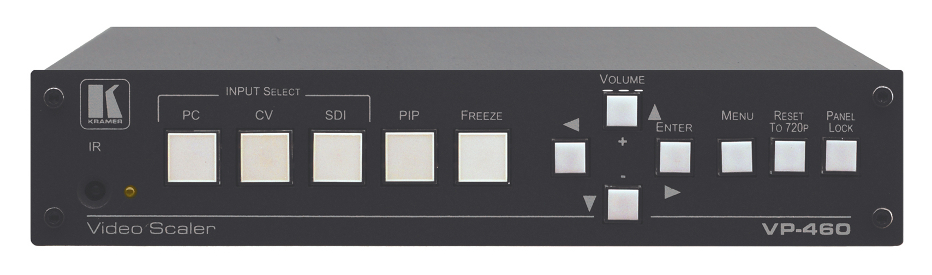

Kramer VP-460
3-Input Analog & 3G HD-SDI ProScale Presentation Switcher/Scaler

OUR PART #:  VP460

The VP-460 from Kramer is a high-quality presentation switcher and scaler with PIP for computer graphics, composite video and 3G HD-SDI signals.
Learn More
Our Price: $1,196.00
List Price: $1,495.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP-460
Qty:
In Stock

Similar Products

The VP-460 from Kramer is a high-quality presentation switcher and scaler with PIP for computer graphics, composite video and 3G HD-SDI signals. It scales the video, embeds the audio and outputs the signal to the HDMI and SDI outputs together with a digital audio output. Typical applications for this model include:

  • Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging.
  • Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for projection purposes.

Kramer VP-460 Includes:

  • Switcher/Scaler
  • Power supply
  • IR remote control

Kramer VP-460 Features:

  • K-IIT XL™ Picture-in-Picture Image InsertionTechnology - Ultra-stable picture-in-picture, picture-and-picture, and split screen capability. Any video source can be inserted into or positioned next to an SDI video source or vice versa with window positioning and sizing controls.
  • Kramer’s PixPerfect™ Scaling Technology - Kramer’s precision pixel mapping and high quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down-scaling of all video input signals.
  • Ultra-Fast Fade-Thru-Black (FTB™) Switching - Video switching transitions are clean and ultra fast. The video fades to black and the new input fades from black for smooth, glitch-free switching. The output signal provides constant sync so the display never glitches.
  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI(SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
  • Video Inputs - 1 computer graphics on a 15-pin HD connector, 1 composite video on an RCA connector, 1 SD/HD/3G HD-SDI with loop on BNC connectors.
  • Scaled Outputs - 1 HDMI, 1 SD/HD/3G HD-SDI on a BNC connector.
  • 40 Output Resolutions - Up to WUXGA, 1080p and 2K.
  • HDMI Deep Color Support - For inputs and outputs.
  • Luma Keying - Via PIP window.
  • Vertical Keystoning.
  • Built-in ProcAmp - Color, sharpness, contrast, brightness and gamma are set individually for each input.
  • 3D Comb Filtering - Provides the best quality color separation for composite video inputs.
  • Built-in Time Base Corrector - Stabilizes unstable video sources.
  • Powerful Noise Reduction Filters - Temporal, block, mosquito and combing.
  • Picture Zooming - From 100% to 1600% on both main and PIP picture.
  • De-interlacing - 3:2 and 2:2 pull-down; 24sf handling.
  • Multiple Aspect Ratio Selections - Follow input, follow output, best fit, letterbox and overscan.
  • Dual Window Display - Preset picture-in-picture, picture-and-picture and split screens, as well as customized window layouts.
  • Audio Inputs - 1 computer graphics on a 3.5mm mini-jack connector, 1 CV on RCA connectors; embedded audio (user selectable) on the SDI input.
  • Audio Outputs - 1 S/PDIF on an RCA connector, embedded audio on the HDMI and SDI outputs.
  • Power Save Modes - Options for efficient energy use.
  • Advanced EDID Management - For each input and each output.
  • Non-Volatile Memory - Saves final settings.
  • Firmware Upgrades - Via RS-232.
  • Flexible Control Options - Front panel buttons, OSD (on-screen display) via front panel buttons or IR remote (remote control included); control application software for use via RS-232.
  • Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with an optional RK-1 adapter.

Kramer VP-460 Specifications:

  • Inputs: 1 computer graphics on a 15-pin HD connector, 1 composite video, 1Vpp @75ohm on an RCA connector, 1 SD/HD/3GHD-SDI on a BNC connector, 1 unbalanced stereo audio on a 3.5mm mini jackconnector, 1 unbalanced stereo audio on 2 RCA connectors.
  • Outputs: 1 SD/HD/3G HD-SDI on a BNC connector, 1 HDMI (deep color) connector, 1 S/PDIF digital audio on an RCA connector.
  • Compliance with HDMI Standard: Supports HDMI DeepColor.
  • Output Resolutions: 640x480 @60, 640x480 @75, 800x600@50, 800x600 @60, 800x600 @75, 1024x768 @50, 1024x768 @60, 1024x768 @75,1280x768 @50, 1280x768 @60, 1280x800 @60, 1280x1024 @50, 1280x1024 @60,1280x1024 @75, 1360x768 @60,1366x768 @50, 1366x768 @60, 1400x1050 @50,1400x1050 @60, 1600x900 @60, 1600x1200 @50, 1600x1200 @60, 1680x1050 @60,1920x1200 @60, 480i60, 480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60,1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60, 2K50, 2K60.
  • Controls: Front panel buttons, OSD, IR remote control, RS-232 on a 9-pin D-sub connector.
  • Power Consumption: 5V DC, 2.90A.
  • Operating Temperature: 0° to +40°C (32° to 104°F).
  • Storage Temperature: -40° to +70°C (-40° to 158°F).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Dimensions (WxDxH): 21.5 x 16.3 x 4.4cm (8.5" x 6.4" x1.7")
  • Weight: 0.9kg (1.98lbs) approx.
  • Options: RK-1 rack adapter.
