OCEAN MATRIX OMX-HDMI-SDI
HDMI to 3G SDI Mini Converter with Looping Output

OUR PART #:  OMX-HDMI-SDI

The cost effective broadcast quality Ocean Matrix HDMI to SDI Converter accepts HDMI and converts it to 2 (dual) 3G SDI outputs with up to 8-Channels of embedded audio.
Learn More
Our Price: $154.95
List Price: $179.95
You save 14%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

OCEAN MATRIX OMX-HDMI-SDI
Qty:
In Stock

Similar Products

The cost effective broadcast quality Ocean Matrix HDMI to SDI Converter accepts HDMI and converts it to 2 (dual) 3G SDI outputs with up to 8-Channels of embedded audio. A quick and seamless solution to add SDI outputs to cameras, DVRs or any HDMI enable device. The OMX-HDMI-SDI can also add SDI to computers or video projectors with HDMI (or DVI via HDMI-DVI adapter).

HDMI to SDI Conversion Wherever You Need It
The compact size of the OMX-HDMI-SDI makes it a perfect solution for camera backs, cable reels in the field, house of worship monitor extensions and more. It features the highest quality video processing for use in just about any post production and Pro-AV application.

All-In-One Converter and SDI Splitter
The OMX-HDMI-SDI delivers two identical SDI outputs for an all-in-one converter and 3G SDI splitter. The creation of two SDI broadcast quality signals from a single HDMI input gives you broader possibilities such as additional monitor and video wall feeds, local camera recording options and in field director visuals.

8-Channels of Embedded Audio
The OMX-HDMI-SDI supports up to 8-Channels of embedded audio. Add a dis-embedder to its secondary output and now you can easily access the SDI audio for output to audio mixers, analog broadcast decks and audio monitors!

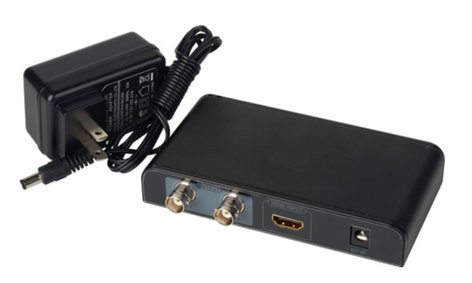

Ocean Matrix OMX-HDMI-SDI Includes:

  • HDMI to SDI Converter Unit
  • 5.0V AC/DC Switching Power Supply
  • User Manual

Ocean Matrix OMX-HDMI-SDI Features:

  • Broadcast Quality HDMI to SDI converter
  • 1080p Compatible
  • Dual SDI Outputs / 3G SDI Splitter
  • EDID auto detect HDMI Input
  • Output (Max bit rate: 2.97G/S)
  • SDI Embedded Audio up to 8-Channels

Ocean Matrix OMX-HDMI-SDI Specifications:

  • SDI Output Format: SD-SDI/HD-SDI/3G-SDI
  • SDI Compliance: SMPTE-259/274/296/372/424/425/292
  • SDI Port: BNC x2
  • SDI Impedance: 75 Ohm
  • SDI Audio: SDI embedded audio up to 8 channels
  • SDI Output Resolutions: 480i @ 60Hz; 576i@ 50Hz; 720p @ 50Hz; 720p @ 60Hz; 1080i @ 50Hz; 1080i @ 60Hz; 1080p @ 24/25/30/50/60Hz
  • HDMI Input Resolutions: 480i @ 60Hz; 576i@ 50Hz; 720p @ 50/60Hz; 1080i @ 50/60Hz; 1080p @ 24/25/30/50/60Hz; 480p @ 60Hz; 576p @ 50Hz; 720p @ 50/60Hz; 1080p @ 50/60Hz
  • Power In: DC5V/1A
  • Dimensions: 3.125"L (including BNC) x 5"W x 0.937"H
  • Operating Temperature: 0~60 C
