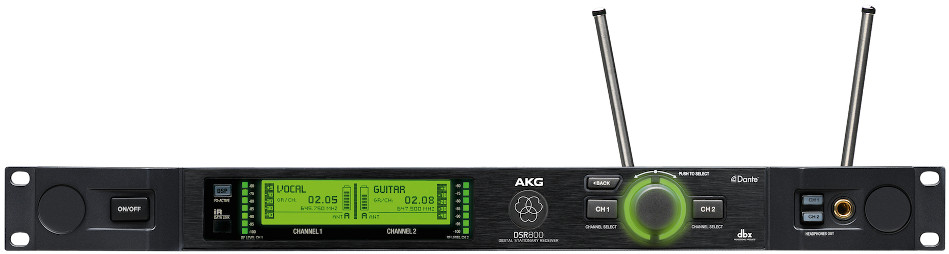

AKG DSR800-BD1 Digital Wireless Stationary Receiver, Band 1

OUR PART #: DSR800-BD1 MFR #: 3380H00100

Copied to clipboard
AKG DSR800-BD1 Digital Wireless Stationary Receiver, Band 1 Image 1
AKG DSR800-BD1 Digital Wireless Stationary Receiver, Band 1 Image 2
AKG DSR800-BD1 Digital Wireless Stationary Receiver, Band 1
Our Price: $1,526.00
List Price: $1,904.44
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$43/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AKG DSR800 BD1 reference two-channel digital wireless receiver provides an ultra-wide bandwidth of up to 150MHz for reliable operation with the flexibility to meet the needs of a wide range of applications. It is designed to work with the versatile DHT800 BD1 handheld transmitter, which offers interchangeable microphone capsules, and the DPT800 BD1 body-pack transmitter, for line and microphone signals.

For enhanced flexibility, the DSR800 BD1 provides two digital audio outputs – for DANTE and AES EBU. The receiver finds interference-free channels and synchronizes the corresponding setup data to the transmitter via infrared signal. The environment scan converts the DSR800 BD1 into a spectrum analyzer, scanning the receiver's frequency band for active radio frequencies and displaying the spectrum.

AKG DSR800 BD1 Features:

  • Two channels in a compact 19" metal casing for secure rack-mounting and transportation
  • Graphic spectrum analyzer provides a clear overview of radio frequencies
  • User-friendly operation by fast and intuitive system setup
  • Integrated digital signal processing with low-cut filter, three-band equalizer, dbx® compressor and dbx limiter
  • Analog and digital audio outputs - 2x balanced XLR, 2x unbalanced 1/4" jack connectors, AES EBU output and DANTE output

AKG DMS800 BD1 System Specifications:

  • Audio Bandwidth: 25 Hz - 20 kHz (+/- 3dB)
  • RF Output: 50 mW
  • Frequency Selection: Selectable frequency in25kHz steps
  • Radio Range (Line of Sight): 100m (depending on antenna system)
  • Switchable RF Power: yes
  • Modulation: Digital FSK
  • Encryption: 512 bit
  • Diversity: Digital Diversity
