Soundcraft Si Impact 80-Input Digital Mixing Console and 32-in/32-out USB Interface

OUR PART #: SI-IMPACT MFR #: 5056170

Copied to clipboard

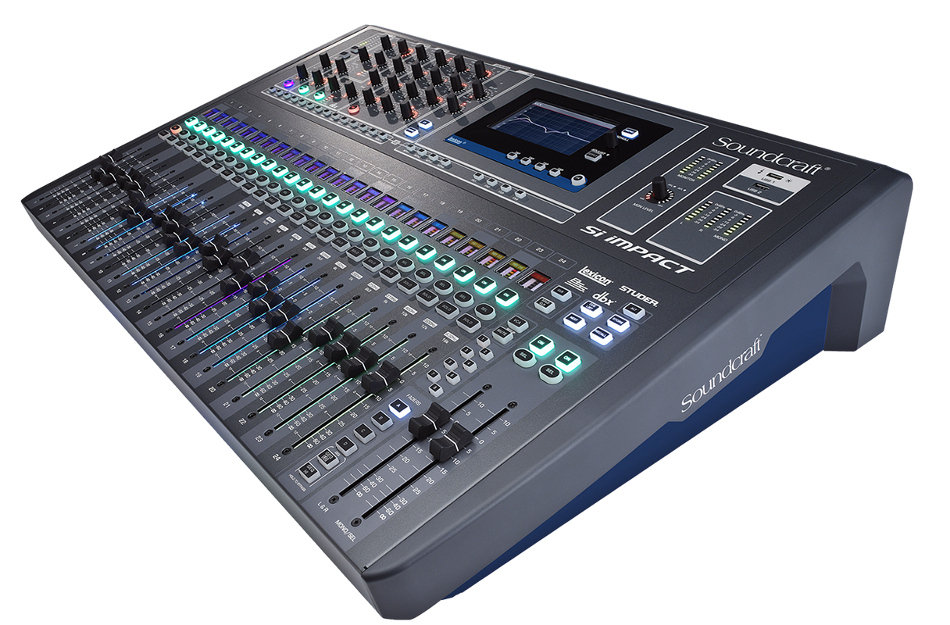

Soundcraft Si Impact 80-Input Digital Mixing Console And 32-in/32-out USB Interface Image 1
Soundcraft Si Impact 80-Input Digital Mixing Console And 32-in/32-out USB Interface Image 2
Soundcraft Si Impact 80-Input Digital Mixing Console And 32-in/32-out USB Interface Image 3
0k0Tic4cLCE
1 Video
Soundcraft Si Impact 80-Input Digital Mixing Console And 32-in/32-out USB Interface
Our Price: $3,209.00
List Price: $4,883.00
You save 34%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$90/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Soundcraft Si Impact 40-input digital mixing console offers a familiar analog-style feel while adding enhanced workflow with features such as onboard DSP and a 32-in/32-out USB audio interface. Combining One-Knob-One-Function control with unique features like FaderGlow™, Soundcraft combines analog workflow with digital flexibility. FaderGlow™ illuminates the fader track in different colors to provide at-a-glance status information on precisely what the fader is controlling – aux sends, FX sends, or even the graphic EQ that's available on every bus. Each fader channel also features a clear multi-color LCD display, giving at-a-glance information on levels and offering a fully customizable "scribble strip" to name your channels. The Si Impact is packed with DSP power from the acknowledged experts in digital FX. That means studio-grade reverbs, delays, and modulations from Lexicon, legendary dbx dynamics, and industry-standard BSS Graphic Equalizers. With built-in connectivity for an optional Soundcraft Stagebox (sold separately), Si Impact lets you put your I/O where you need it. Set up your Stagebox by the band for live sound applications, or position it in the live room for studio recording all via a single piece of Cat 5 cable. The Si Impact makes recording quick and easy with superb quality, built-in 32-in/32-out USB recording and playback – and a free download of Ableton Live Lite 9 is included. A single connection to your Windows or Mac computer and you're ready to make multi-track recordings direct to any digital audio workstation. Send up to 32 inputs and 32 outputs to and from your DAW for recording and playback. The mix power of Si Impact is accessible from anywhere in the venue, via the Soundcraft remote iPad® app. Mix FOH from the audience location, mix monitors from the stage, or allow musicians to set their own monitor mix from multiple iPad® devices. Plus, Soundcraft is happy to announce an incredible free update to the Si Impact that doubles your total channels to mix from 40 to 80! Now combine the 32 mix inputs on the Si Impact console plus all 32 USB inputs for 64 total channels to mix. Add one Soundcraft Mini Stagebox 32i or 16i to get up to 64 mic channels to mix. Or add a second MADI option card and two Mini Stagebox units for up to 96 microphone preamps, 128 total available inputs and 80 channels to mix. Add the Dante option card to get 64 Dante channels to mix.

Features

  • Up to 80 channels to mix
  • 32 Mic Inputs
  • 8 XLR/1/4" Combi-jacks for line inputs and instruments
  • 40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
  • 31 Output busses (All with full DSP processing and GEQ)
  • 4-band Fully Parametric EQ on each channel and bus
  • 8 VCAs + 8 Mute groups
  • 26 motorised faders (24 input + LR/Mono)
  • 4 fully customisable Fader Layers
  • Built-in Stagebox Connectivity
  • 5" touchscreen display
  • Multi-Colour LCD Channel Displays on each input fader
  • 4 studio-grade Lexicon Effects engines and dedicated FX busses
  • BSS Graphic Equalisers on every bus
  • 20 sub-group / aux busses
  • 4 mono/stereo matrix busses
  • 32x32 USB audio interface for multi-track recording and playback

Specifications

  • Frequency Response
    • Mic / Line In to any Output: +/-1.5dB, 20Hz-20kHz
  • T.H.D.
    • Mic Sensitivity -30dBu < 0.01% @ 1kHz
  • Noise
    • Residual noise -86dBu
    • Mic Input E.I.N. 22Hz - 22kHz, Unweighted. (max gain)
    • 126dBu (150Ω source)
    • Mix noise, masters at unity < -86dBu
    • 1 input to mix at unity gain -84dBu
    • CMRR mic @1KHz (max gain) -80dBu
  • Crosstalk (@ 1kHz)
    • Channel ON attenuation
    • Channel Fader attenuation
    • Mic – Mic -100dB @ 1KHz, -85dB@10kHz
    • Line – Line -100dB @ 1KHz, -85dB@10kHz
  • Input Gain
    • Mic Gain -5dB – 58dB integrated pad design, 1dB steps
    • Line Trim -10dB - +16dB
  • Gate
    • Threshold -60dBfs - -6dBfs
    • Depth -60dB - -3dB
    • Attack 0.1ms – 200ms
    • Release 20ms – 500ms
    • Side-chain HPF 22Hz – 2.5kHz
    • Side-chain LPF 160Hz – 20kHz
  • Compressor
    • Threshold -52dBfs - -6dBfs
    • Ratio 1:1 – 20:1
    • Attack 0.1ms – 200ms
    • Release 5ms – 900ms
    • Makeup Gain 0dB – 24dB
  • EQ
    • All Bands 22Hz – 20kHz, +/-15dB Q 6-0.3
    • Shelf (HF) 800Hz – 20kHz, +/-15dB
    • Shelf (LF) 20Hz – 500Hz, +/-15dB
    • HPF 40Hz – 1kHz
  • Delay
    • User adjustable delay 1sample – 500ms
  • GEQ
    • 31Hz – 16KHz 1/3 octave
  • Digital I/O
    • External Word Clock In range 48kHz +/-7Hz (internal systems), +/-3Hz with stageboxes.
    • Word clock out jitter +/- 7ns
    • Analogue out for 0dBfs +21.5dBu
    • Converter resolution 24-bit
    • DSP resolution 40-bit floating point
  • Latency
    • Mic In to Line Out
    • Analogue in to AES out
    • Stagebox Mic In to Stagebox
  • Input & Output Levels
    • Mic Input +22dBu max
    • Line Input +22dBu max
    • Mix Output +21.5dBu max
    • Headphones (@150Ω) 300mW (recommended impedance 75 to 200Ω)
  • Input & Output Impedances
    • Mic Input 3kΩ
    • Line Input 10kΩ
    • Outputs 150Ω (balanced), 75Ω (unbalanced)
    • Word Clock used as Output 50Ω
    • Word Clock used as Input 4K7Ω
    • AES Output 110Ω
  • USB
    • Max current 500mA
    • Power
    • Consumption (typical)
    • AC Input voltage range 88-264VAC auto sensing
    • AC Frequency range 47-63Hz
  • Operating Conditions
    • Operating Temperature Range 5°C to 45°C
    • Humidity 0%-90%, non condensing Ta=40°C (104°F)
    • Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
