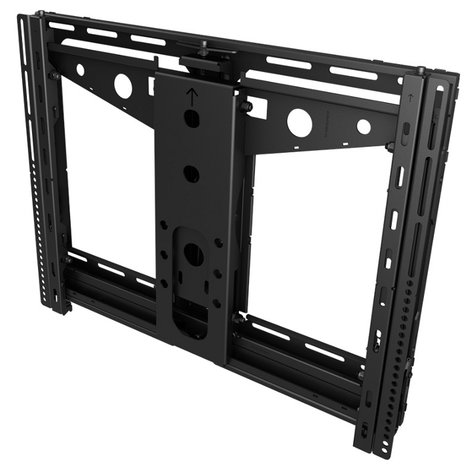

Premier Mounts LMVS
Press & Release Pop Out Ultra-Slim Mount for Displays Up To 100 lbs.


Call for price! Not available online.

The LMVS Press & Release™ Pop Out Slim Mount from Premier Mounts showcases ADA compliance for a variety of recessed wall or picture-framed digital signage applications. The Premier Mounts’ formulated Press & Release™ access design allows for accessibility anywhere on a video wall, featuring a depression clasp that automatically latches closed and springs open with a gentle push on the display. The LMVS features multi-monitor stacking, custom spacers, spring-loaded release, open design, top adjustable mounting brackets and scissor design for smooth extension.

Premier Mounts LMVS Features:

  • Meets ADA compliance with 1.98" of space from the wall in the closed position
  • Industry’s first Press & Release™ Design for easy service access in under 5 seconds
  • Top-adjustable fine-tune mounting brackets ensure post-installation alignment
  • Scissor design with compact mounting arms allow for extension in one smooth motion with a slight press to the display edge
  • Single latch design and smaller base frame size provide quick and easy installation
  • Spring-loaded locking mechanism provides quick release from locked position
  • Laser cut, precision design spacers ensure seamless alignment without need for time consuming adjustments
  • “Click-It" locking feature confirms display is secure through an audible noise

Premier Mounts LMVS Specifications:

  • Weight: 36.00 lb.| 16.4 kg
  • Weight Capacity per Mount: 100 lb.| 45.5 kg
  • Number of Mounts: 1
  • Total Weight Capacity: 100 lb.| 45.5 kg
  • Width: 27.00 in.| 686 mm
  • Height: 21.60 in.| 549 mm
  • Depth: 1.98 in.| 50 mm
  • Mounting Pattern Type: Range
  • Mounting Pattern: 200 x 200 (Min) - 600 x 400 (Max) mm
  • Typical Display Sizes: 37.00 - 65.00 in.
  • DIM Sizes: 25.00 in. (wide) x 5.25 in. (high) x 32.00 in. (deep) | 635 mm x 133 mm x 813 mm
