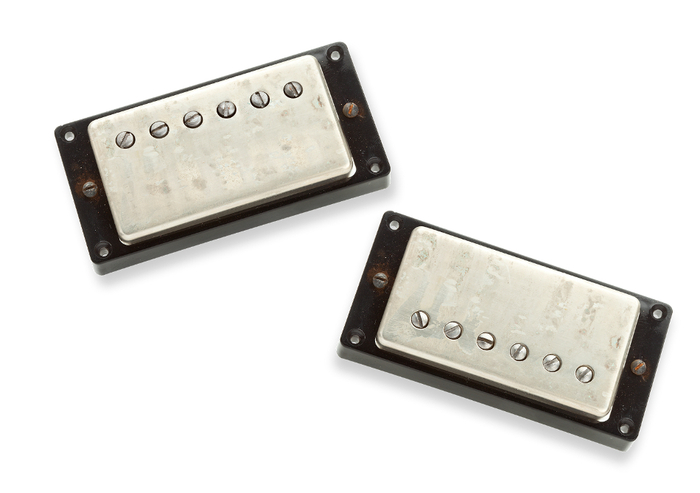

Seymour Duncan Antiquity Series
Neck and Bridge Humbucker Pickup Set in Nickel

OUR PART #  11018-05-NC

Our Price: $269.00
List Price: $381.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Seymour Duncan Antiquity Series Neck and Bridge Humbucker pickup set were designed to look and sound like a set of well-worn "PAF" 50s humbuckers based on Seth E. Lover's original design. These pickups come with slight variations in DC resistance to sound as close to the originals as possible. The bridge pickup is wound slightly hotter and better balanced for its position, and the mounting ring is slightly higher for the increased pickup height. The neck pickup includes a front-tapered mounting ring and matching screws. Individual pole pieces on each pickup are adjustable to further customize your sound while using these pickups.

These pickups are not wax potted, so they retain the sound and appearance of the originals, and they are hand built in Seymour Duncan's "Antiquity Room" to ensure the most genuine authenticity possible.

Seymour Duncan Antiquity Series Neck and Bridge Humbucker Set Specifications:

  • Finish:  Nickel
  • Width:  1.494"
  • Length:  2.750"
  • Max Height with Leg:  1.095"
  • Mounting Ring Width:  1.756"
  • Moutning Ring Length:  3.537"
  • Mounting Ring Max Height:  0.235"
  • Minimal Height:  0.150"
  • Adjustable Pole Piece Length:  0.750"
  • Head Adjustment Screw Height:  1.250"
  • Magnet Calibration:  S-adj. side
  • Magnet Gauss:  15 - 20 gauss
  • DC Ohms:
    • Neck:  7.8 kOhms
    • Bridge:  8.52 kOhms
  • Inductance:
    • Neck:  4.22 henries
    • Bridge:  5.12 henries
  • Q:
    • Neck:  2.29
    • Bridge:  2.38
