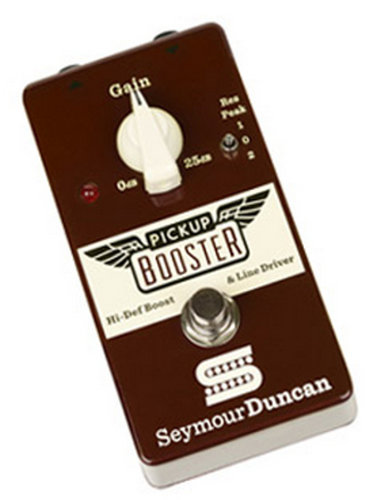

Seymour Duncan Pickup Booster
Boost Pedal

OUR PART #  11900-003

Our Price: $99.00
List Price: $141.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Seymour Duncan Pickup Booster allows you boost your signal without altering the character of your sound while also allowing you to access different pickup tones with the flip of the Resonance Switch. With its class A, low-noise circuit design the Pickup Booster is exceptional at emphasizing a guitar's natural tone while adding some muscle and fatness. It's extremely transparent, adds clarity and has several new improvements that build even further on the original's success. The Gain control can now be turned down to unity (0dB). A discrete push-pull output stage has been included, which gives you increased drive capability. So even with the Gain knob down at 0dB and a long cable length, your signal chain will sound cleaner.

The Resonance Switch makes the pedal interact directly with your pickups, allowing those with single-coils to flip a switch for a vintage humbucker sound that's perfect for classic rock or blues. With another flip of the switch you can get a high-output humbucker tone for rip roaring solos or for blasting gain out of a tube amp. You can use the Pickup Booster for a clean, buffered boost with more headroom or you can fatten up a humbucker for maximum saturation and sustain. Like the Dirty Deed, Vapor Trail and 805 Overdrive, each Pickup Booster is assembled in Santa Barbara, California and is True-Bypass.

Seymour Duncan Pickup Booster Specifications:

  • Type of Circuitry:  Fully discrete, Class A
  • Gain Range:  0 to 25dB
  • Bypass:  True bypass
  • Pickup Resonance Switch:  Makes a single coil pickup sound like a vintage humbucker ("1") or high output humbucker ("2")
  • Frequency Response:  -3dB at 30 Hz and 38 kHz
  • Distortion:  <0.02% at 200mV RMS output
  • Noise:  -120dBV (referred to input with gain set at 25dB)
  • Input Impedance:  250 kOhms (when effect is "on")
  • Output Impedance:  150 Ohms
  • Power:  9V battery or external 9 to 18V Regulated DC Adapter (center negative)
  • Current Consumption:  4.5 mA @ 9V (when LED is "on"); 3mA @ 9V (when LED is "off"); Currents at 18V are 11mA and 8mA respectively
  • Dimensions:  2.61" x 4.90" x 1.45"
  • Weight:  0.8 lbs without battery
  • Designed and assembled in Santa Barbara, California

Seymour Duncan Pickup Booster
Boost Pedal

OUR PART #  11900-003

Product Information:

The Seymour Duncan Pickup Booster allows you boost your signal without altering the character of your sound while also allowing you to access different pickup tones with the flip of the Resonance Switch. With its class A, low-noise circuit design the Pickup Booster is exceptional at emphasizing a guitar's natural tone while adding some muscle and fatness. It's extremely transparent, adds clarity and has several new improvements that build even further on the original's success. The Gain control can now be turned down to unity (0dB). A discrete push-pull output stage has been included, which gives you increased drive capability. So even with the Gain knob down at 0dB and a long cable length, your signal chain will sound cleaner.

The Resonance Switch makes the pedal interact directly with your pickups, allowing those with single-coils to flip a switch for a vintage humbucker sound that's perfect for classic rock or blues. With another flip of the switch you can get a high-output humbucker tone for rip roaring solos or for blasting gain out of a tube amp. You can use the Pickup Booster for a clean, buffered boost with more headroom or you can fatten up a humbucker for maximum saturation and sustain. Like the Dirty Deed, Vapor Trail and 805 Overdrive, each Pickup Booster is assembled in Santa Barbara, California and is True-Bypass.

Seymour Duncan Pickup Booster Specifications:

  • Type of Circuitry:  Fully discrete, Class A
  • Gain Range:  0 to 25dB
  • Bypass:  True bypass
  • Pickup Resonance Switch:  Makes a single coil pickup sound like a vintage humbucker ("1") or high output humbucker ("2")
  • Frequency Response:  -3dB at 30 Hz and 38 kHz
  • Distortion:  <0.02% at 200mV RMS output
  • Noise:  -120dBV (referred to input with gain set at 25dB)
  • Input Impedance:  250 kOhms (when effect is "on")
  • Output Impedance:  150 Ohms
  • Power:  9V battery or external 9 to 18V Regulated DC Adapter (center negative)
  • Current Consumption:  4.5 mA @ 9V (when LED is "on"); 3mA @ 9V (when LED is "off"); Currents at 18V are 11mA and 8mA respectively
  • Dimensions:  2.61" x 4.90" x 1.45"
  • Weight:  0.8 lbs without battery
  • Designed and assembled in Santa Barbara, California
