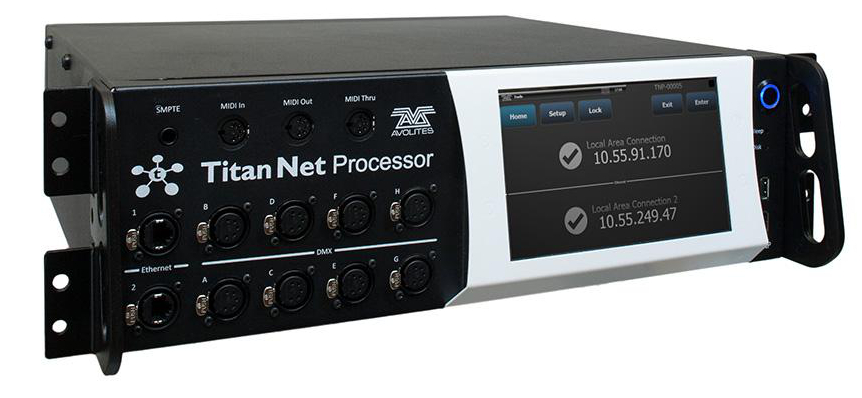

Avolites Titan Net Processor
16 Universe Lighting Control Processor

OUR PART #:  30-01-1600

Unleash the power of your Titan system with the Titan Net Processor from Avolites.
Learn More

Call for price! Not available online.
List Price: $10,995.00

Similar Products

Unleash the power of your Titan system with the Titan Net Processor from Avolites. The Titan Net Processor (TNP) not only increases the capacity of your system to up to 64 universes, but also offers seamless integration with Titan Net back up, and spreads the processing load for heightened reliability of today’s channel intensive shows. Each TNP processes up to 16 universes of which 8 are provided as DMX512 on the unit and all 16 universes are available via Art-net over the dual Ethernet port.

Avolites Titan Net Processor Features:

  • Each DMX outlet is optically isolated from the system and fully floating.
  • The TNP has the same processing power as used in the Sapphire Touch and other Titan consoles. The complete processing unit and local SSD storage is mounted on a shock mounted sub-frame inside the TNP case.
  • The TNP not only offers more universe but also shares the processing load of your show.
  • Use Avolites' simple graphical interface to set up and manage your network.
  • The TNP is an integral part of the Titan family of consoles and therefore a dedicated UI is provided on the console to closely manage the connected TNP units on a network.
  • The Dual Gigabit Network connections can be transferred to the back of the unit so structured cabling can be routed inside the rack for more reliability.
  • The TNP is equipped with a built-in UPS increasing the resilience of thenetwork against mains failure.

Avolites Titan Net Processor Specifications:

  • Part Number: 30-01-1600
  • Compatible with the following Avolites products:
    • Expert Pro
    • Tiger Touch Pro
    • Titan Mobile
  • Connects to any Titan console.
  • 16 universes processed.
  • 8 DMX512 outlets, protected by optical and galvanic isolation.
  • SMPTE balanced Time Code Inputs.
  • MIDI In, Thru and Out Connectivity.
  • 2 Gigabit Ethernet ports to output Artnet or streaming ACN front or rear fitted as standard.
  • Bright high resolution (800x600) touch sensitive LCD screen slated upwards for fast local control.
  • Two USB sockets at the front.
  • Built in UPS 5 x 5 minute sessions without charging.
  • 100-240v AC mains input range.
  • Processing unit is housed in a shock mounted frame.
  • Distributed Pixel map rendering engine.
  • Network Time Synchronisation.
  • 40ms system update speed.
  • Fast, low latency for live applications.
  • Intel i5 processor, 2Gb Ram, fast SSD drive for the system.
  • Plated and painted steel enclosure, 3HE x 19” x 14.49" deep (from frontstrip), 2.29" protrusion from the front strip.

NOTE: The Titan Net Processor is compatible with Titan consoles running Titan OS V7 and above.
