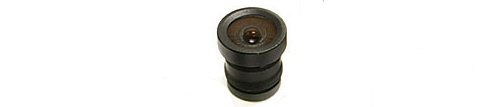

Marshall Electronics V-4405.6-2.0-HR
5.6mm Hi-Res Miniature Fixed Focal Lens with M12 Mount

OUR PART #:  V-4405.6-2.0-HR

Our Price: $18.53
List Price: $39.99
You save 54%!
Marshall Electronics V-4405.6-2.0-HR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marshall Electronics V-4405.6-2.0-HR high-resolution miniature fixed focal lens with M12 mount features improved image quality to maximize the capability and performance for a variety of applications. This series of lenses has M12 x 0.5 barrel threads and are compatible with most Marshall cameras. The V-LH04 and V-LH08 lens holders can be used for OEM designs.

Marshall Electronics V-4405.6-2.0-HR Specifications:

  • Focal Length: 5.6mm
  • Relative Aperture: 2.0
  • Sensing Area: 1/3"
  • Back Focal Length: 8.07
  • Number of Elements: 4
  • Angular Field of View:
    • 1/3" CDD:
      • H: 51.4°
      • V: 36.9°
      • D: 65.3°
    • 1/4" CCD:
      • H: 38.8°
      • V: 28.9°
      • D: 48.5°
  • D1: ø8.4 mm
  • D2: ø14.0 mm
  • Minimum Object Distance: 40cm-8
  • Weight: 4g
  • Length: 17.6 mm
  • L1: 4.8 mm
  • L2: 3.2 mm
  • L3: 3 mm
  • L4: 42 mm
  • L5: (1) 1.6 mm
  • LT: 25.2 mm
