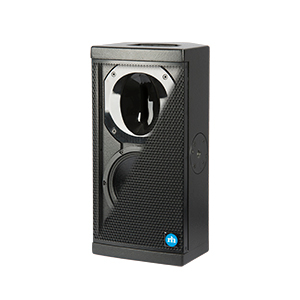

Renkus-Heinz RH81
2-Way, 8" Powered Speaker, 8" LF + 1"HF, Black

OUR PART #  RH81

Selected Model Price: $2,204.23
List Price: $3,068.00

Save up to 28%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The Renkus-Heinz RH/RHX Series enclosures represent an apex in point-source portable PA systems. The RH Series is a build-to-order system featuring a dual wedge angle design and exceptionally versatile rigging and mounting options, with self-powered models that offer advanced power modules with user-friendly presets. All models include screw thread points and a range of mounting hardware.

The RH/RHX62 utilizes the same driver compliment as the IC Live series making it an ideal front fill or under balcony speaker to supplement IC live systems.

The Renkus-Heinz RH/RHX81 uses the same compression driver as the RH/RHX62, RH/RHX101, IC Live and IC² products making it an ideal companion product with similar tonality.

The RH/RHX81 features a dual angle cabinet design, and can be used as a low-profile floor monitor that allows you to choose between a 30 or 45 degree angle - depending on the application. RH versions are self-powered, incorporating two- or three-way amplifier modules with built-in DSP and four factory presets. RHX versions are non-powered and designed to work with external amplification.

Reinkus-Heinz RH81 Features:

  • Compact Multi-Function, Multi-Angle Design:
    • Provides a wide range of mounting choices and great flexibility
  • Premium 1" HF Driver and High Power 8" Woofer:
    • Neodymium magnets deliver smooth, low-distortion 13 dB peak SPL performance from 70 Hz to 20 kHz
  • Exclusive Complex Conic Waveguide Design:
    • Provides constant beamwidth/directivity without the problems associated with conventional rectangular horns
    • Can be rotated 90° within the cabinet
  • Reliable, Easy-to-Use Hardware:
    • Multiple threaded pole sockets and an assortment of mounting hardware allow for easy horizontal and vertical mounting in virtually any situation
  • Applications:
    • Any application where size is a critical issue and sonic performance requirements are high
    • Live sound reinforcement in large and small venues: night clubs, house of worship; performing arts centers and auditoriums, etc.
    • Floor monitors for performing musicians
    • Foreground music systems in bars, restaurants, nightclubs,lounges

Reinkus-Heinz RH81 Specifications:

  • Sensitivity: 1.0V for RPO
  • Freq. Range: 70 Hz to 20 kHz
  • Max SPL: 122 dB peak @ 1 meter
  • Dispersion: 120° x 60° standard, 90° x 60° also available
  • Power Rating: 290 W AES @ 8 Ohms
  • Transducers:
    • 1” HF driver, RH model SSD1750TN
    • 8” woofer; RH model SSL8-6-18
  • Connectors: Looping XLR, Looping PowerCon
  • Enclosure: Multi-ply hardwood, perforated steel grille
  • Finish: Black Paint
  • Weight: 35 Lbs (15.9 Kg) Net
  • Dimensions: 21 3/4” H x 10 1/2” W x 10 1/2” D (55.3 cm x 26.7 cm x 26.7cm)

Renkus-Heinz RH81
2-Way, 8" Powered Speaker, 8" LF + 1"HF, Black

OUR PART #  RH81

Product Information:

The Renkus-Heinz RH/RHX Series enclosures represent an apex in point-source portable PA systems. The RH Series is a build-to-order system featuring a dual wedge angle design and exceptionally versatile rigging and mounting options, with self-powered models that offer advanced power modules with user-friendly presets. All models include screw thread points and a range of mounting hardware.

The RH/RHX62 utilizes the same driver compliment as the IC Live series making it an ideal front fill or under balcony speaker to supplement IC live systems.

The Renkus-Heinz RH/RHX81 uses the same compression driver as the RH/RHX62, RH/RHX101, IC Live and IC² products making it an ideal companion product with similar tonality.

The RH/RHX81 features a dual angle cabinet design, and can be used as a low-profile floor monitor that allows you to choose between a 30 or 45 degree angle - depending on the application. RH versions are self-powered, incorporating two- or three-way amplifier modules with built-in DSP and four factory presets. RHX versions are non-powered and designed to work with external amplification.

Reinkus-Heinz RH81 Features:

  • Compact Multi-Function, Multi-Angle Design:
    • Provides a wide range of mounting choices and great flexibility
  • Premium 1" HF Driver and High Power 8" Woofer:
    • Neodymium magnets deliver smooth, low-distortion 13 dB peak SPL performance from 70 Hz to 20 kHz
  • Exclusive Complex Conic Waveguide Design:
    • Provides constant beamwidth/directivity without the problems associated with conventional rectangular horns
    • Can be rotated 90° within the cabinet
  • Reliable, Easy-to-Use Hardware:
    • Multiple threaded pole sockets and an assortment of mounting hardware allow for easy horizontal and vertical mounting in virtually any situation
  • Applications:
    • Any application where size is a critical issue and sonic performance requirements are high
    • Live sound reinforcement in large and small venues: night clubs, house of worship; performing arts centers and auditoriums, etc.
    • Floor monitors for performing musicians
    • Foreground music systems in bars, restaurants, nightclubs,lounges

Reinkus-Heinz RH81 Specifications:

  • Sensitivity: 1.0V for RPO
  • Freq. Range: 70 Hz to 20 kHz
  • Max SPL: 122 dB peak @ 1 meter
  • Dispersion: 120° x 60° standard, 90° x 60° also available
  • Power Rating: 290 W AES @ 8 Ohms
  • Transducers:
    • 1” HF driver, RH model SSD1750TN
    • 8” woofer; RH model SSL8-6-18
  • Connectors: Looping XLR, Looping PowerCon
  • Enclosure: Multi-ply hardwood, perforated steel grille
  • Finish: Black Paint
  • Weight: 35 Lbs (15.9 Kg) Net
  • Dimensions: 21 3/4” H x 10 1/2” W x 10 1/2” D (55.3 cm x 26.7 cm x 26.7cm)
