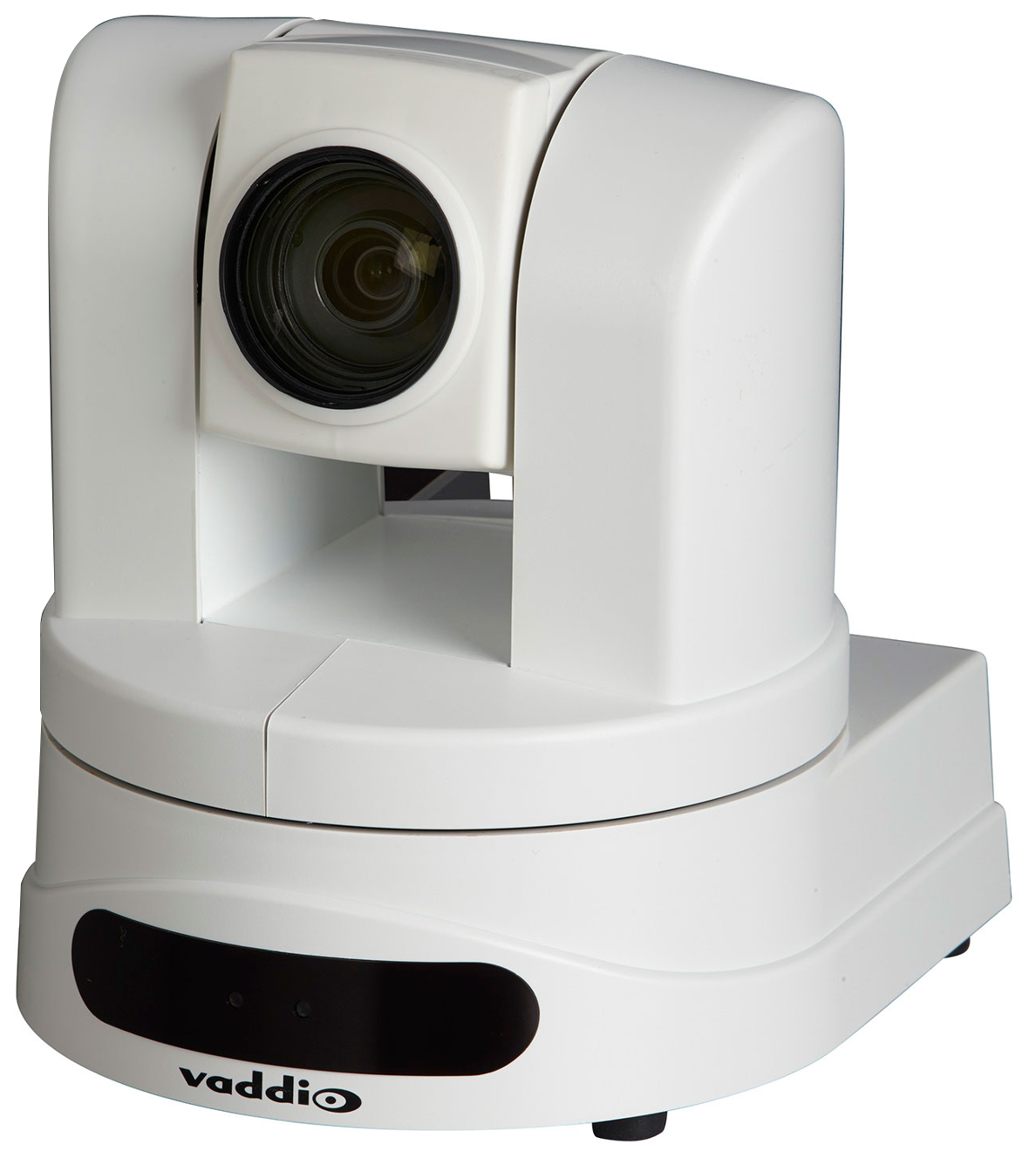

Vaddio ClearVIEW HD-20SE HD
PTZ Camera in Black or Arctic White

OUR PART #  CLEARVIEW-HD-20SE

Selected Model Price: $3,776.00
List Price: $4,195.00

Save up to 10%!
Select model: (shipping times are approximate)

Recommended Accessories

The Vaddio ClearVIEW HD-20SE HD PTZ Camera combines the best features and functions of their HD-18, HD-19, and HD-20 PTZ cameras, including an advanced Image Signal Processor (ISP) and encompassing the innovation of the HD-18, the low light capability of the HD-19, and the Full HD performance of the HD-20 ClearVIEW Camera series. It offers native 1080p/60, and uses the latest 1/2.8-type Exmor high speed, low noise CMOS image sensor technology with a total of 2.38 Megapixels. The afforementioned ISP delivers fast, razor-sharp auto-focus routines, incredible detail, realistic textures, and vivid colors, and additionally, an impressive low-light performance of 0.3 Lux (color) and 0.03 Lux (B/W). As the name suggests, the HD-20SE features a 20X optical zoom multi-element glass lens has 63-degree wide to 3.47-degree tele horizontal field of view. It's outputs include simultaneous HDMI, YPbPr, and HSDS with support for both drop frame and non-drop frame HD video resolutions. Available in either Black or Arctic White housing finish.

Vaddio ClearVIEW HD-20SE HD Includes:

  • ClearVIEW HD-20SE HD PTZ Camera
  • Vaddio IR Remote Commander
  • EZCamera Control Adapter (DE-9F to RJ-45F)
  • 12 VDC, 3.0 Amp Power Supply and AC Cord Set

Vaddio ClearVIEW HD-20SE HD Key Features:

  • 20X optical Zoom multi-element glass lens
  • Advanced Exmor 1/2.8”, 2.38 Megapixel, Full HD (1080p/60 native) High-Speed, Low Noise CMOS Sensor
  • 63-degree wide to 3.47-degree tele horizontal field of view
  • 0.3 Lux low light (color) performance, F1.6, 1/30fps, 50IRE
  • Direct HDMI, YPbPr and HSDS Video Outputs
  • Compatible with Quick-Connect Interfaces
  • Available in Black or Artic White (each color available separately — please specify when ordering)

Vaddio ClearVIEW HD-20SE HD Specifications:

  • Image Sensor: 1/2.8-Type Exmor, high-speed, low-noise CMOS Image Sensor with 2.38 Megapixels (2.14Mp effective)
  • Zoom: 20X Optical Zoom with Multi-element Glass Lens
  • Field of View:
    • Horizontal: 63º Wide End to 3.47º Tele End
    • Vertical: 36.8° Wide End to 1.85° Tele End, (16:9 Aspect Ratio)
  • Lens Focal Length: f=4.44mm to 89mm / F1.6 - F3.4
  • Minimum Illumination Color: 0.3 Lux (F1.6, 1/30 sec, 50 IRE), B/W: 0.03 Lux (F1.6, 1/30 sec, 50 IRE)
  • Video Resolutions HD: 1080p/60/59.94/50./30/25, 1080i60/59.94/50 and 720p/60/59.94/50, HD Video Resolutions Only
  • Video Output Formats: HDMI, Analog Component, HSDS (Differential Video, Power and Control for Quick-Connects)
  • Signal to Noise Ratio: >50 dB (AGC: Off)
  • Compatible Quick-Connects: Quick-Connect SR, Quick-Connect DVI/HDMI SR, Quick-Connect USB and Quick-Connect Universal CCU
  • Pan/Tilt Range:
    • Pan: +170 degrees to -170 degrees
    • Tilt: +90 degrees to -30 degrees
  • Preset Positions: 16 (internal), 6 recalled via IR Remote
  • Control Methods: RS-232, IR Remote Commander, and OSD (on screen display)
  • Tally Light Available via RS-232 Control
  • HD Video Select: 16-Position Rotary Switch: Used to set HD Video Resolution Output of both HDMI and YPbPr signals
  • Camera Settings: 10-Position Dip Switch: Settings for IR Select, Baud Rate 9600, Image Flip, Color Space etc…
  • Accessory Slot Cards: EZIM CCU Slot Card PN# 999-6900-006 - For Use with Quick-Connect CCU Only (sold separately)
