Product Overview

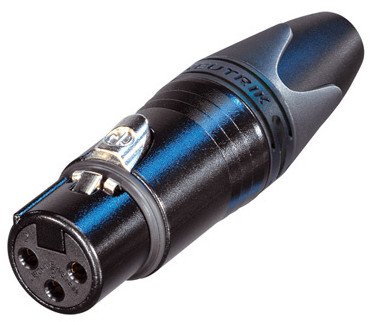

The Neutrik NC3FXX-HA-BAG is a 3-pole female XLR cable connector with a black metal housing, silver contacts, and crimp termination (standard B crimp).
Neutrik NC3FXX-HA-BAG Features:
- Unique cage design of female contact for low contact resistance and high integrity
- Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
- Gastight and Solderless connection (RoHS compliant)
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, long-lasting and dependable
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Neutrik NC3FXX-HA-BAG Specifications:
- Electrical:
- Capacitance between contacts: < /= 4 pF
- Contact resistance: < /= 3 mOhm (inner)
- Dielectric strength: 1.5 kVdc
- Insulation resistance: > 10 GOhm (initial)
- Rated current per contact: 1 A
- Rated voltage: < 50 V
- Mechanical:
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: < /= 20 N
- Withdrawal force: < /= 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: 0.22 - 0.34 mm²
- Wiresize: 24 - 22 AWG
- Wiring: Crimp contacts
- Locking device: Latch lock
- Material:
- Boot: Polyurethane
- Contact plating: 2 µm Ag
- Contacts: Bronze (CuSn8)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Strain relief: Polyacetal (POM)
- Environmental:
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
