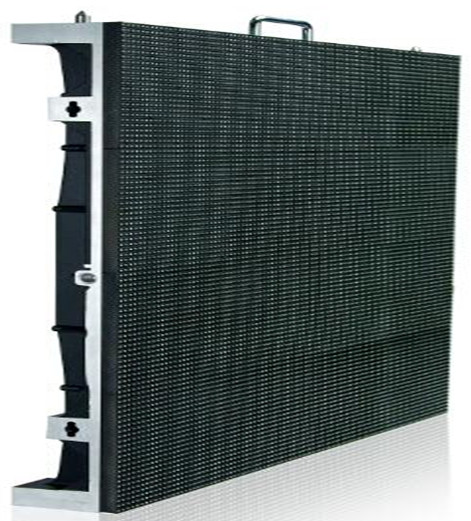

Vanguard LED Displays AO-P07.62
Outdoor LED Video Display with 7.62mm Pixel Pitch

OUR PART #:  AO-P07.62

Vanguard LED Display Technologies AO-P07.62 Outdoor LED Panel features a 7.62mm pixel pitch, with a pixel configuration that is SMD 3-in-1...
Learn More

Call for info!

Similar Products

Vanguard LED Display Technologies AO-P07.62 Outdoor LED Panel features a 7.62mm pixel pitch, with a pixel configuration that is SMD 3-in-1, and can be used as part of a larger LED Video system. Vanguard's outdoor screens are water-resistant at IP65 front and IP54 back while their permanent outdoor LED screens are waterproof at IP65 front and back. Vanguard LED video screens feature Novastar controllers and receiving cards, and Meanwell Power supply units.

Vanguard outdoor cabinets are constructed of die-cast aluminum, but certain outdoor permanent installation require iron cabinets (contact your Sales Pro for more information). Hanging bars or permanent attachment points are available (sold separately). Vanguard includes software at no extra charge; depending upon your needs, Vanguard can provide you with a media server that makes the entire system seamless.

NOTE: For more information on how to order custom size Vanguard LED panel packages, please contact your Sales Pro.

Vanguard AO-P07.62 Includes:

  • Display Panel
  • Hanging Bar
  • Road Case
  • Cables
  • Cabinet
  • Silan LED Chip Model
  • MBI5151 Driving IC Model
  • 5V60A UL Power Supply Unit
  • Novastar 660 Sending Card
  • Novastar 300 Receiving Cards

Vanguard AO-P07.62 Specifications:

  • Technical Parameters:
    • SMD 3-in-1 3020 Black:
      • Red LED:
        • Wave Length: 620-626nm
        • Viewing Angled (H/V): 140º/140º
        • Test Conditions: 25º C, 20mA
      • Green LED:
        • Wave Length: 523-529nm
        • Viewing Angled (H/V): 140º/140º
        • Test Conditions: 25º C, 20mA
      • Blue LED:
        • Wave Length: 467-473nm
        • Viewing Angled (H/V): 140º/140º
        • Test Conditions: 25º C, 20mA
  • Module:
    • Pixel Pitch: 7.62mm
    • Pixel Density: 17222 dots/m²
    • Pixel Configuration: 1R1G1B, SMD 3-in-1 3030 black face LED
    • Pixel Quantity (WxH): 42 x 21 px
    • Module Size: 12.6" x 6.3"
  • Cabinet:
    • Pixel Quantity (WxH): 84 x 84 px
    • Cabinet Size (WxHxD): 25.2" x 25.2" x 4.8"
    • Module Configuration (WxH): 2 x 4 pcs
    • Power Consumption:
      • 85W Average
      • 250W Max
    • Material: Die-casting Aluminum
    • Cabinet Weight: 27.6 lbs/pc
    • IP Rating: IP65 Front & Back
  • Screen:
    • Pixel Quantity (WxH): 588 x 336 pcs
    • Dimension (WxH): 14.7ft x 8.4ft
    • Cabinet Configuration (WxH): 7 x 4 pcs
    • Brightness: > / = 5000 nits
    • Driving Method: 1/8 scan
    • Minimum Viewing Distance: 25ft
    • Power Consumption:
        • 2380W Average
        • 7000: W Max
    • Input Voltage: AC220V/50Hz / AC110V/60Hz
    • Total Screen Weight: 772.8 lbs
    • Cascade Cabinet Quantity: 8 pcs
    • Hanging Cabinet Quantity: 15 pcs
    • Refresh Frequency: > / =2000Hz
    • Frame Frequency: 60Hz
    • Gray Scale: 14-bits
    • Brightness Control:
        • 256 levels manually
        • 16 levels automatically
    • Dot Defects Rate: < / = 0.0001
    • Life Span: >100,000 hours
    • Operating Temperature: 14° F~122° F (-10° C~50° C)
    • Storage Temperature: -4° F~140° F (-20° C~60° C)
    • Operating Humidity: 20%~90% RH
    • Input Signal: DVI, HDMI
    • Communication Cable:
      • CAT5 (< / = 100m)
      • Optical Fiber (500m-15000m)
    • Certifications: ETL, CCC, CE
    • Receiving Card: Novastar 300
    • IC Driver: MBI5151
