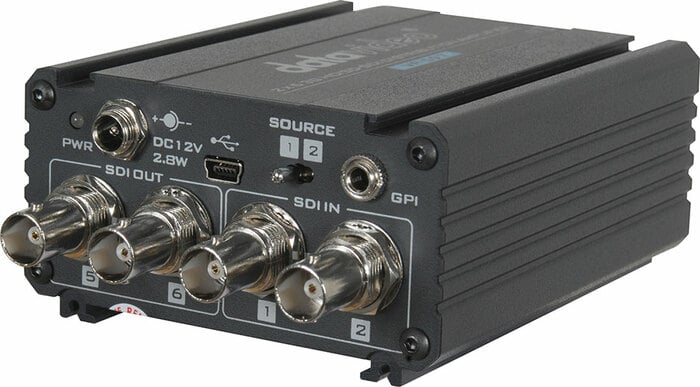

Datavideo Corporation VP-597
2x6 3G/HD/SD-SDI Distribution Amplifier

OUR PART #:  VP-597

The Datavideo VP-597 is a 2-input, 6-output SDI distribution amplifier with unlocked A/B input switching control.
Learn More
Our Price: $299.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation VP-597
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Datavideo VP-597 is a 2-input, 6-output SDI distribution amplifier with unlocked A/B input switching control. It supports 3G/HD/SD-SDI video, embedded audio, and re-clocking for long distance cable runs. Two source inputs can be switched by an A/B panel switch or through GPI remote control interface.

Datavideo VP-597 Includes:

  • VP-597 Unit
  • Power Adapter and Cable
  • Instruction manual

Datavideo VP-597 Features:

  • Dual Inputs with Switch - Choose 1 of 2 sources to distribute to 6 outputs.
  • Locking power connector prevents accidental unplugging / power-down.
  • Supports 3G Video
  • Switch inputs using the physical button or use the GPI Connection.
  • Compatible with the RMK-2 holder, which holds multiple converters and distribution amplifiers in a 2RU space.
  • Compatible with the MB-4 battery adapter, allowing it to function with a battery instead of the supplied power adapter and cable.
  • Also compatible with the MB-5 velcro strap adapter, which helps keep the VP-597 out of the way.

Datavideo VP-597 Specifications:

  • Video Connections:
    • Video Input: 2x 3G/HD/SD-SDI (Distribute either 1 of 2 inputs using a switch or GPI.)
    • Video Output: 6x 3G/HD/SD-SDI
  • Embedded audio stays embedded in the output.
  • Supported Resolutions (Input & Output):
    • 1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60Hz)
    • 1080i (50 / 59.94 / 60Hz)
    • 720p (50 / 59.94 / 60Hz)
    • 625i
    • 525i
