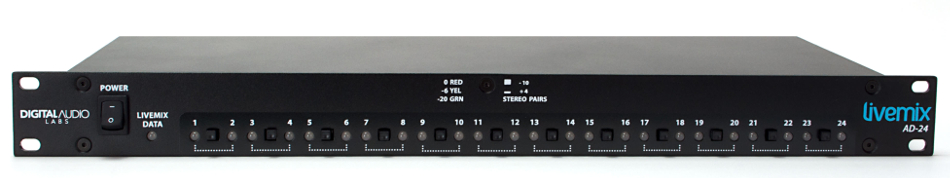

Livemix AD-24
Rackmount Analog Input Unit for Livemix Personal Monitoring System

OUR PART #:  AD-24

The Livemix AD-24 is a single rack mounted unit that converts analog audio from a mixer, snake...
Learn More
Our Price: $899.99
List Price: $1,199.99
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Livemix AD-24
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Livemix AD-24 is a single rack mounted unit that converts analog audio from a mixer, snake, or other line level source into studio quality digital audio streams for use as part of Livemix's personal monitoring system. Every Livemix system requires an input unit, a central mixer/distributor, and at least one personal mixer. To design the system, choose either an analog or Dante input unit, then select the central mixer based on how many mixes are required, and then add as many personal mixers as needed. The AD-24 can take input signals via TRS or DB-25, and the inputs are pass-through, so signals may be patched out of the AD-24 if required. The simple front panel interface allows selection of -10dBV or +4dBu line level in stereo pairs and indicates input signal levels by LED.

Livemix AD-24 Features:

  • TRS and DB-25 input format with pass-through
  • 48 kHz / 24-bit digital to analog conversion
  • Simple front-panel setup
  • LED VU indicators
  • Compact 1U rack space

Livemix AD-24 Specifications:

  • THD+N:  0.001%
  • S/N Ratio:  111dB
  • Frequency Response:  20 Hz - 22 kHz ┬▒0.5dB
  • Crosstalk:  -92dB
  • Maximum Input Level:  +24dBu (minor distortion above 23.5dBu, hard clip at +24dBu)
  • Input Impedance:  20 kOhms balanced, 10 kOhms unbalanced
  • Max Cable Length to MIX-16/32:  300 ft
