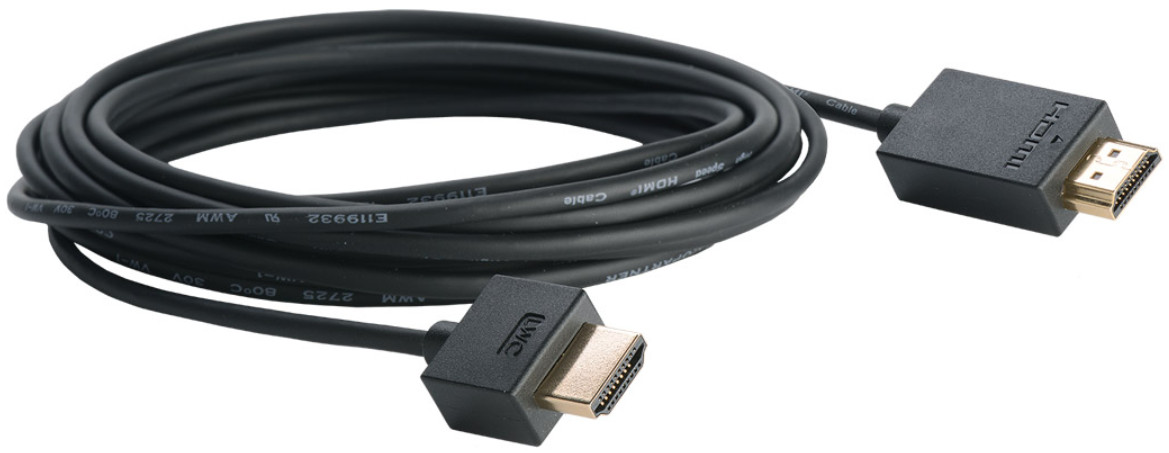

Liberty AV E-MHDM-M-01.5 5 ft (1.5M) Passive High Speed Micro HDMI with Ethernet Cable

Liberty AV Solutions E-MHDM-M micro HDMI cables are designed for installations that require extreme cable flexibility or installations where space is at a premium. The cable is very small and flexible, and the hood is less than half the size of a normal molded HDMI connector. Typical installation environments include podium and table top interfaces, behind flat panel displays, or in equipment racks.

E-MHDM-M micro HDMI cables are constructed of 36 AWG conductors surrounded by dual shields of tinned copper braid and aluminum foil to prevent external interference. Even though the thickness of the cable does not exceed 4 mm (0.16"), all wire connections are present, which will make this cable an ideal substitute for bulkier standard size HDMI cables.

The E-MHDM-M micro HDMI cables are not rated for in-wall applications. These are AWM rated for class 2 device interconnection and internal equipment hookup.

Applications:

• HDMI Digital Multimedia Device Interconnection
• Rack patching HDMI equipment
• Inter and Intra device Interconnection.

Liberty AV Solutions E-MHDM-M-01.5 Features:

• Supports data rates of 10.2 Gbps
• Resolutions up to 4Kx2K, 3D, 1080p, all audio formats, CEC, and Audio Return Channel are supported
• HDMI "A" Male to "A" Male Connectivity
• All Gold-Plated Contact Surfaces
• Ultra-small flexible diameter cable 3.6mm
• 36 AWG TMDS Pair Construction
• Dual-Layer Foil and High % Braid shielding
• Flexible Polyvinyl Chloride Jacket
• AWM rating, RoHS Compliant
• Third Party ATC Certified HDMI(R) High Speed
• 10.2 Gbps / 4Kx2K / 3D / CEC
• All HDMI Audio formats supported

Liberty AV Solutions E-MHDM-M-01.5 Specifications:

• Connectors: HDMI Type A
• Source Connector Dimensions (including hood): 0.79" x 1.02" x 0.24" (20 x 26 x 6 mm)
• Sink Connector Dimensions (including hood): 0.79" x 1.02" x 0.24" (20 x 26 x 6 mm)
• Cable Construction: 36 AWG conductors, PVC jacket
• Cable Diameter: 0.142" (3.6 mm)
• Warranty: 2 years
