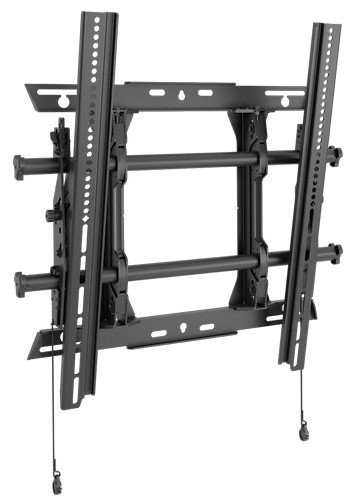

Chief MTMP1U Series Medium Flat Panel Tilt Portrait Mount

OUR PART #: MTMP1U MFR #: MTMP1U

Copied to clipboard

The Chief Manufacturing Fusion Series MTMP1U is a Medium Tilt Wall Portrait Display Mount. ...Read more

Chief MTMP1U Series Medium Flat Panel Tilt Portrait Mount Image 1
6ClK2VBjv_Q?rel=0
1 Video
Chief MTMP1U Series Medium Flat Panel Tilt Portrait Mount
Our Price: $175.20
List Price: $219.00
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$5/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Chief Manufacturing Fusion Series MTMP1U is a Medium Tilt Wall Portrait Display Mount. Chief has upgraded wall mounts based on installer feedback and direct observations of installers in the field. Many features are integrated into Fusion favorites like Centerless shift and ClickConnect Latching.

Benefits include added stability, faster install, improved lateral shift, easier cable management, and enhanced security.

Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Chief Manufacturing Fusion Series MTMP1U Features:

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • ControlZone Leveling for post-installation fine tuning of height and leveling
  • Centerless Shift provides up to 10.4" (265 mm) of post-installation lateral shift for limitless centering
  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away

Chief Manufacturing Fusion Series MTMP1U Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 10.4" (265mm)
  • Manual Height Adjustment: 1" (25mm)
  • Maximum Screen Thickness: 6"
  • Minimum Depth: 3.2" (81mm)
  • Mounting Pattern Compatibility (Universal Versions): 100mm x 100mm - 570mm x 600mm
  • Orientation: Portrait
  • Overall Dimensions (H x W x D): 24.5" x 20.88" x 3.2" (622mm x 530mm x 81mm)
  • Shipping Weight: 25.25 lbs.
  • Solution Type: Universal
  • Tilt: +5°, -12°
  • Typical Screen Sizes: 32" - 47"
  • Wall Stud Compatibility: Single stud and 16"
  • Weight Capacity:
    • 200 lbs. (91 kg) Dual Stud
    • 125 lbs. (57 kg) Single Stud

Note:

To ensure this mount works with your equipment, contact your Sales Professional.
