Chief LSM1U Fixed Flat Panel Static Mount

OUR PART #: LSM1U MFR #: LSM1U

Copied to clipboard

The Chief Manufacturing Fusion Series LSM1U is a Fixed Static Display Mount. ...Read more

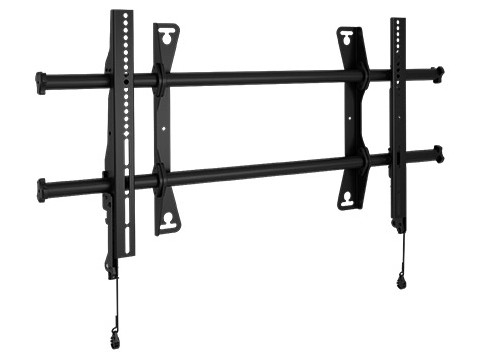

Chief LSM1U Fixed Flat Panel Static Mount Image 1
6ClK2VBjv_Q?rel=0
1 Video
Chief LSM1U Fixed Flat Panel Static Mount
Our Price: $216.80
List Price: $271.00
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$7/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Chief Manufacturing Fusion Series LSM1U is a Fixed Static Display Mount. Chief has upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many features are integrated into Fusion favorites like Centerless shift and ClickConnect Latching.

Benefits include added stability, faster install, improved lateral shift, easier cable management, and enhanced security.

Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Chief Manufacturing Fusion Series LSM1U Features:

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away

Chief Manufacturing Fusion Series LSM1U Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 17.4" (441 mm)
  • Manual Height Adjustment: 1" (25 mm)
  • Minimum Depth: 2" (51 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 mm x 100 mm - 880mm x 400 mm
  • Orientation: Landscape
  • Overall Dimensions (HxWxD): 18.25" x 34.75" x 2" (464 x 883 x 51mm)
  • Shipping Weight: 19.37 lbs.
  • Solution Type: Universal
  • Typical Screen Sizes: 37 - 63"
  • Wall Stud Compatibility: 16" - 32"
  • Weight Capacity: 200 lbs. (91 kg)

NOTE:

To ensure this mount works with your equipment, contact your Sales Professional.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
