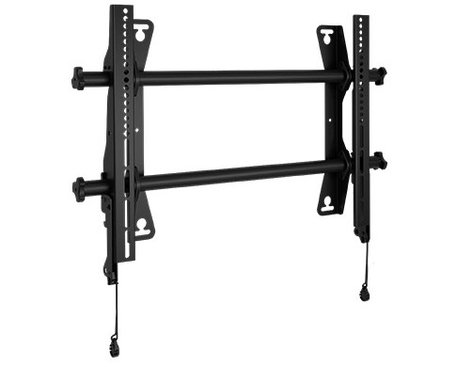

Chief Manufacturing Fusion Series MSA1U
Medium Fixed Wall Display Mount

OUR PART #:  MSA1U

The Chief Manufacturing Fusion Series MSA1U is a Medium Fixed Wall Display Mount.
Learn More

Add to Cart to See Price

Write the first review.
Chief Manufacturing Fusion Series MSA1U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Chief Manufacturing Fusion Series MSA1U is a Medium Fixed Wall Display Mount. Chief has upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many features are integrated into Fusion favorites like Centerless shift and ClickConnect Latching.

Benefits include added stability, faster install, improved lateral shift, easier cable management, and enhanced security.

Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

NOTE: To ensure this mount works with your equipment, contact your Sales Professional.

Chief Manufacturing Fusion Series MSA1U Features:

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • Centerless Shift provides up to 12.9" (327 mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away

Chief Manufacturing Fusion Series MSA1U Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 12.9" (327mm)
  • Minimum Depth: 2" (51mm)
  • Mounting Pattern Compatibility (Universal Versions): 100mm x 100mm - 640mm x 400mm
  • Orientation: Landscape
  • Overall Dimensions (H x W x D): 17.93" x 25.75" x 2" (455mm x 654mm x 51mm)
  • Shipping Weight: 13.87 lbs.
  • Solution Type: Universal
  • Typical Screen Sizes: 26" - 47"
  • Wall Stud Compatibility: 16" - 24"
  • Weight Capacity: 125 lbs. (56.8 kg)
