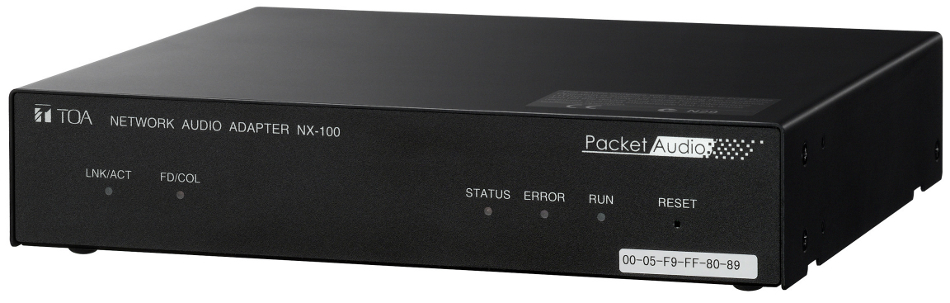

TOA NX-100
Network Audio Adapter w/Power Supply

OUR PART #  NX100PSUS

Our Price: $1,424.19
List Price: $1,762.44
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The TOA Electronics NX-100 Network Audio Adapter can transmit high-quality audio signals and such control data as serial data over IP networks (ex: LAN or Internet) in real time. It is especially useful when transmitting audio signals to remote locations, as Internet use keeps running costs lower than the use of dedicated lines. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard rack (1 unit size).

TOA Electronics NX-100 Includes:

  • CD (PC Installation & Operation software programs, Instruction manuals)
  • Power supply removable terminal plug (3 pins)
  • Two Audio I/O removable terminal plug (3 pins)
  • Two Control I/O removable terminal plug (9 pins)
  • RS-232C connector cover
  • Eight Bracket mounting screw

TOA Electronics NX-100 Specifications:

  • Power Source:
    • 24 V DC (removable terminal block (3 pins) or
    • AC adapter AD-246 (optional) or the equivalent
  • Current Consumption: 200 mA (DC operation)
  • Audio Input:
    • 1 channel (transformer-isolated), -58 dB* to 0 dB*, balanced (MIC/LINE changeable, volume adjustable with volume control), 2 kOhm, removable terminal block (3 pins)
  • Audio Output: 1 channel (transformer-isolated),balanced, 600 Ohm, removable terminal block (3 pins)
  • Frequency Response: 50 - 14,000 Hz (when sampling frequency is 32 kHz)
  • Distortion: Under 0.3% (1 kHz, when sampling frequency is 32 kHz)
  • Control Input:
    • 8 channels, no-voltage make contact input, open voltage
      • 12 V DC, short-circuit current: 10 mA, removable terminal block (9 pins)
  • Control Output:
    • 8 channels, open collector output (polarized), with stand voltage
      • 30 V DC, control current: 50 mA max., removable terminal block (9 pins)
  • Network I/F: 10BASE-T/100BASE-TX, Auto-Negotiation
  • Serial I/F: RS-232C (DCE I/F), D-sub connector (9P,male), 9600bps - 115200bps
  • Network Protocol: TCP, UDP, ARP, ICMP, HTTP, RTP,IGMP
  • Audio Packet Transmission System:
    • Unicast (Up to 4 simultaneous transmissions),
    • Multicast (Up to 64 simultaneous transmissions)
  • Operating Temperature: 0? to +50? (0? to +40? when ACadapter is in use)
  • Operating Humidity: Under 90% RH (no dew condensation should be produced)
  • Finish: Steel plate, black, 30% gloss
  • Dimensions: 210 (W) × 44.7 (H) × 188 (D) mm
  • Weight: 1.2 kg
  • Optional Components:
    • Rack mounting bracket: MB-15B-BK (for rack mounting one NX-100 unit),
    • MB-15B-J (for rack mounting two NX-100 units)
    • AC adapter: AD-246
Half-Width Rack Mounting BracketTOA MB15B-BK Half-Width Rack Mounting Bracket

Features: "Half Width" Rack Mounting Bracket. Includes half width blank panel to fill the gap left when rack mounting half width products.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$49.06List Price: $60.71You save 19%!
