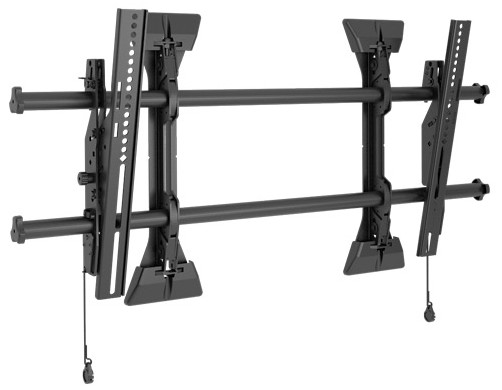

Chief Manufacturing Fusion Series LTM1U
Large Micro-Adjustable Tilt Display Mount

OUR PART #:  LTM1U

The Chief Manufacturing Fusion Series LTM1U is a Large Micro-Adjustable Tilt Flat Panel Wall Mount.
Learn More

Add to Cart to See Price

Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Chief Manufacturing Fusion Series LTM1U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Chief Manufacturing Fusion Series LTM1U is a Large Micro-Adjustable Tilt Flat Panel Wall Mount. Chief has upgraded wall mounts based on installer feedback and direct observations of installers in the field. Many features are integrated into Fusion favorites like Centerless shift and ClickConnect Latching.

Benefits include added stability, faster install, improved lateral shift, easier cable management, and enhanced security.

Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

NOTE: To ensure this mount works with your equipment, contact your Sales Professional.

Chief Manufacturing Fusion Series LTM1U Features:

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • ControlZone Leveling for post-installation fine tuning of height and leveling
  • Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away

Chief Manufacturing Fusion Series LTM1U Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 17.4" (441 mm)
  • Manual Height Adjustment: 1" (25mm)
  • Maximum Screen Thickness: 6"
  • Minimum Depth: 2" (51mm)
  • Mounting Pattern Compatibility (Universal Versions): 100mm x 100mm - 830mm x 400mm
  • Orientation: Landscape
  • Overall Dimensions (H x W x D): 17" x 34.75" x 2" (432mm x 883mm x 51mm)
  • Shipping Weight: 22.01 lbs.
  • Solution Type: Universal
  • Tilt: +2┬░, -12┬░
  • Typical Screen Sizes: 37" - 63"
  • Wall Stud Compatibility: 16-32"
  • Weight Capacity: 200 lbs. (91 kg)
