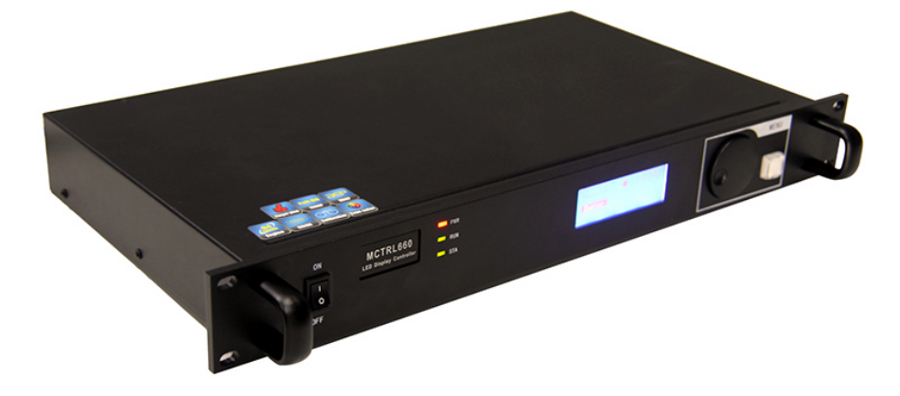

Vanguard LED Displays MCTRL660
Novastar LED Display Sending Unit


VANGUARD LED Displays offers the MCTRL660 - one of the latest independent master controllers by NovaStar.
Learn More

Related Products

VANGUARD LED Displays offers the MCTRL660 - one of the latest independent master controllers by NovaStar. This model is an LED Display Sending Unit that supports screen configuration at any time without a computer. It has the following characteristics:

  • Adopts an innovative architecture to implement smart configuration
  • The screen debugging can be completed within 30 seconds
  • Adopts the Nova G4 engine; the screen is stable and flicker free without scanning lines
  • The images are exquisite and have a good sense of depth
  • Supports Nova's new-generation point-by-point correction technology; the correction is fast and efficient
  • Can implement white balance calibration and color gamut mapping based on different features of LEDs used by screens to ensurere production of true colors
  • Is the only control system supporting the input of 12-bit high-definition multimedia interface (HDMI) and high-bandwidth digital content protection (HDCP) in China
  • Supports screen configuration at any time without a computer
  • Supports manual adjustment of the screen brightness, which is convenient and efficient
  • HDMI/DVI input
  • HDMI/external audio input
  • 12bit/10bit/8bit HD video source
  • Resolution supported: 2048x1152, 1920x1200, 2560x960
  • Resolution supported: 1440x900; (12bit/10bit)
  • 1 light sensor interface
  • Cascading supported
  • 18bit gray scale processing and presentation
  • Video format: RGB,YCrCb4:2:2,YCrCb4:4:4

VANGUARD Novastar MCTRL660 Features:

  • Product type: Controller
  • Input resolution: 1920×1200, 2048×1152, 2560×960 (width and height can be specially defined by customers)
  • Capacity: 2.3 million pixels.
  • Supply voltage: 220V
  • Control method: USB interface.
  • Video interface: HDMI/DVI
  • Audio interface: HDMI/3.5mm
  • Output interface: Four internet accesses.
  • Bit depth of video resource: 8/10/12bit
  • Light sensor interface: Not supported

VANGUARD Novastar MCTRL660 Specifications:

  • Transmitting card model No.: MCTRL 600
  • Control port: USB
  • Video signal input: DVI
  • Signal output: RJ45/Fiber-optic
  • Weight: 11.68 lbs. (5.3 kg)
  • Net weight: 8.60 lbs. (3.9 kg)
  • USB Cable: 4.92 ft. Length  (1.5 m)
  • DVI Cable: 4.92 ft. Length (1.5 m)
  • Limit voltage:
    • Minimum: 100V
    • Maximum: 240V
  • Working voltage:
    • Minimum: 3.3V
    • Maximum: 5.5V
  • Working current: 1.1A
  • Working temperature: -4°F to 140°F (-20°C to 60°C)
  • Working humidity: 10% to 90%
