Neutrik NC5FD-L-BAG-1
DL Series 5-Pin XLR-F Panel Connector with Solder Cups

OUR PART #:  NC5FD-L-BAG-1

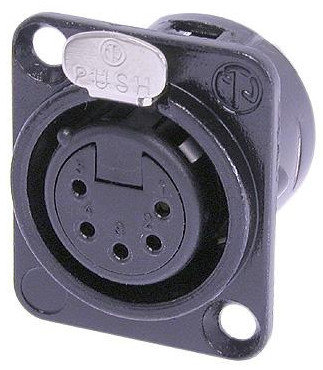

The Neutrik NC5FD-L-BAG-1 is a 5-pole female XLR receptacle with solder cups, a black metal housing, and silver contacts. It has a universal D-size metal body XLR panel mount.
Learn More
Our Price: $7.80
List Price: $11.26
Save up to 42% when you order by quantity!
  • Buy 25: $7.04 each.
  • Buy 50: $6.79 each.
  • Buy 100: $6.54 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC5FD-L-BAG-1
Qty:
Similar Products

The Neutrik NC5FD-L-BAG-1 is a 5-pole female XLR receptacle with solder cups, a black metal housing, and silver contacts. It has a universal D-size metal body XLR panel mount. UL recognized component.

Neutrik NC5FD-L-BAG-1 Features:

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups

Neutrik NC5FD-L-BAG-1 Specifications:

  • Electrical:
    • Capacitance between contacts: </= 7 pF
    • Contact resistance: </= 5 mOhm (inner)
    • Dielectric strength: 1.5 kVdc
    • Insulation resistance: > 10 GOhm (initial)
    • Rated current per contact: 7.5 A
    • Rated voltage: < 50 V
  • Mechanical:
    • Insertion force: </= 20 N
    • Withdrawal force: </= 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 1.0 mm²
    • Wiresize: max. 18 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
    • Chassis shape: D
  • Material:
    • Contact plating: 2 µm Ag over 2 µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Steel Ck67
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Black chromium
  • Environmental:
    • Approvals: UL
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
