Neutrik NBB75DSGB
D-Shape BNC Chassis / Receptacle Connector, Solder Version

OUR PART #:  NBB75DSGB

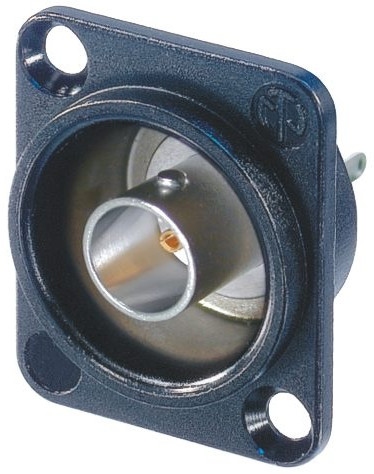

The Neutrik NBBD75DSGB is a grounded BNC chassis connector, solder version in black D-shape housing.
Learn More
Our Price: $7.34
List Price: $10.36
Save up to 41% when you order by quantity!
  • Buy 25: $6.63 each.
  • Buy 50: $6.40 each.
  • Buy 100: $6.16 each.
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NBB75DSGB
Qty:
Similar Products

The Neutrik NBBD75DSGB is a grounded BNC chassis connector, solder version in black D-shape housing. This BNC chassis connector offers a true 75 Ohm design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

Neutrik NBBD75DSGB Features:

  • Gold-plated center contact
  • True 75 Ohm design meets the stringent HD requirements
  • Grounded panel mount
  • Standard D-shape housing - provides flush mounting and protection from demage
  • Color coding possible

Neutrik NBBD75DSGB Specifications:

  • Electrical:
    • Signal Type: HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV
    • Contact resistance: </= 3 mOhm (inner) (inner)
    • Contact resistance: </= 2 mOhm (outer)
    • Dielectric strength: 1.5 kVdc
    • Impedance: 75 Ohm
    • Insulation resistance: > 5 GOhm
    • Rated voltage: <50 V
    • VSWR:
      • </=1.03/>37 dB up to 1 GHz
      • </=1.05/>32 dB up to 2 GHz
      • </=1.08/>28 dB up to 3 Ghz
  • Mechanical:
    • Insertion force: < 25 N
    • Lifetime: > 1000 mating cycles
    • Locking device: Bayonette
    • Mounting direction: front
    • Chassis shape: D
  • Material:
    • Contacts: Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
    • Insert: PTFE
    • Shell: Polyacetal (POM) (Insulation Sheell)
    • Shell plating: Optalloy®
    • D-Shape housing: Zinc diecast (ZnAl4Cu1) gal black chrome plating
  • Temperature range: -30 °C to +85 °C
