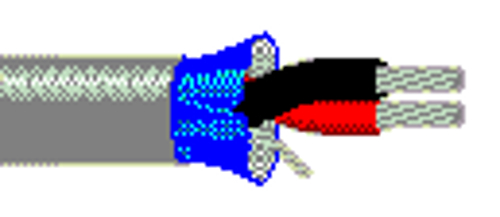

Belden 9451U-SEG-75
75 ft Multi-Conductor Single-Pair Cable

OUR PART #:  9451U-SEG-75

The Belden 9451U is a 22 AWG stranded (7x30) TC conductor cable with polypropylene insulation.
Learn More
Selected Model Sale Price: $10.00
List Price: $37.14
Save up to 73%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Belden 9451U-SEG-75
Select model: (shipping times are approximate)
Qty:
Similar Products

The Belden 9451U is a 22 AWG stranded (7x30) TC conductor cable with polypropylene insulation.

Belden 9451U Specifications:

  • Conductor:
    • AWG:
      • # Pairs: 1
      • AWG: 22
      • Stranding: 7x30
      • Conductor Material: TC - Tinned Copper
    • Total Number of Conductors: 2
  • Insulation:
    • Insulation Material:
      • Insulation Material: PP - Polypropylene
      • Wall Thickness: 0.008"
  • Outer Shield:
    • Outer Shield Material:
      • Outer Shield Trade Name: Beldfoil®
      • Type: Tape
      • Outer Shield Material: Aluminum Foil-Polyester Tape
      • Coverage: 100
    • Outer Shield Drain Wire AWG:
      • AWG: 22
      • Stranding: 7x30
      • Drain Wire Conductor Material: TC - Tinned Copper
  • Outer Jacket:
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Nom. Wall Thickness: 0.020
  • Overall Cable:
    • Overall Nominal Diameter: 0.135"
  • Pair Color Code Chart: 1 Black & Red

NOTE: This is a  75ft Segment of 9451U Cable
