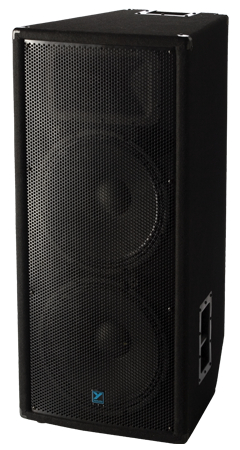

Yorkville YX215
15", 600W, 4ohm Speaker, 1" Driver


Our Price: $459.00
List Price: $649.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Yorkville YX215 is the largest full-range cabinet in their YX Series: a 600-watt dual 15-inch loaded loudspeaker that is ideal for larger live PA applications or mobile DJ systems. Built for use at higher volumes, the solid plywood cabinet construction and rugged internal bracing ensures the YX215 will enjoy a long, rattle-free life. Integrated bar handles and wheels ensure maximum portability for this large format YX Series loudspeaker box.

All YX cabinets offer professional features, from the most compact cabinet in the line to the full, 600-watt, dual 15-inch loaded loudspeaker. The YX215 comes equipped with all metal bar handles, integrated stand mounts, full metal grille and metal input plate (with 1/4-inch and 4-pole Speakon™ compatible cable inputs), as well as an injection-molded 90 x 40 degree horn with a 1-inch throat and 1.4-inch Celestion neodymium compression driver. Yorkville's dual-bulb CTL™ protection system reliably protects the horn driver's aluminum diaphragm in high power PA applications.

These cabinets are built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

Designed with working musicians in mind, the YX Series offers rugged 5/8-inch plywood cabinet construction, all-metal bar handles, metal input plate, integrated speaker mounts and a custom-punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape on select cabinets ensures the YX Series can function equally as well as a front-of-house or monitor speaker.

Yorkville YX215C Features:

  • 600 Watt Full Range Loudspeaker
  • 2x15-inch Woofers
  • 1-inch Compression Driver (1.4-inch Voicecoil)
  • Designed for Full Range Front-of-House Performance
  • 90° x 40° Injection Molded ABS Waveguide Horn
  • Innovative Dual Bulb CTL™ High Frequency Driver Protection
  • 2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
  • Integrated All Metal Speaker Standmount Adaptor
  • Solid 5/8-inch (15mm) Plywood Construction
  • YX215B-FLY (Flyable - Painted Version)
  • Made in Canada

Yorkville YX215C Specifications:

  • System Type: 2-Way
  • Active or Passive: Passive
  • Program Power (Watts): 600
  • Biampable: Yes
  • Nominal Impedance (Ohms): 4
  • Sensitivity (dB @1Watt/1m): 99
  • Max SPL (dB): 127
  • Frequency Response (Hz +/- 3dB): 55 - 20k
  • Crossover Frequency (Hz): 1800
  • Driver Configuration: 2x15 inch / 1.4 inch
  • HF Driver(s): 1.4 inch Aluminum (1 inch Throat)
  • HF Horn: Injection Molded ABS
  • HF Dispersion (°H x °V): 90 x 40
  • HF Protection: CTL™
  • LF Driver(s): 2x15 inch Ceramic
  • LF Program Power(Watts): 600
  • Inputs - 1/4" Jacks: 2
  • Inputs - Speakon 4-pin: 2
  • Corners: Metal
  • Feet: Plastic Glides
  • Bar Handles: 2 (Side) 1 (Back)
  • Flyable Version: YX215B-FLY (EYEBOLT3/8A x 4 Required)
  • Enclosure Materials: 15mm (5/8inch) Plywood
  • Grille: Custom Punched Black Perforated Metal
  • Covering / Finish: Black Ozite
  • Dimensions (DWH xbackW, inches): 21.25 x 19.25 x 42 x 12
  • Dimensions (DWH xbackW, cm): 54 x 48.9 x 106.7 x 30.5
  • Weight (lbs/kg): 78 / 35.4
    *Specifications subjectto change without notice
