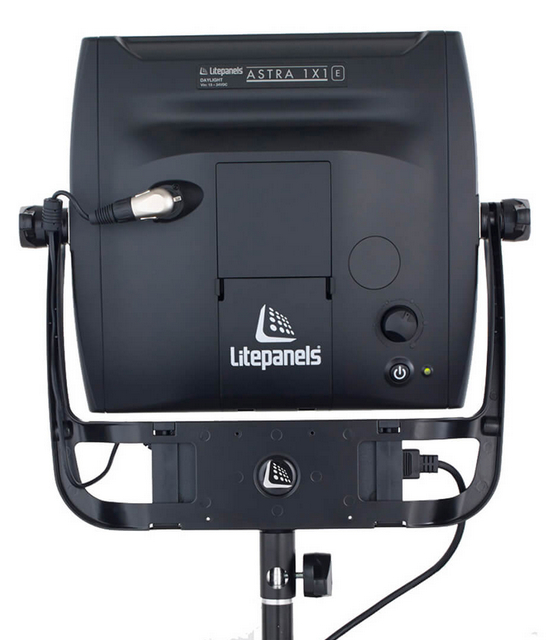

Litepanels Astra 1x1 E Daylight Panel
27W E Daylight LED Fixture

OUR PART #:  935-4001

The ASTRA 1x1 E Daylight panel (also known as 935-4001) from Litepanels builds on the legacy of the original 1x1 fixture...
Learn More
Our Price: $631.75
List Price: $665.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Litepanels Astra 1x1 E Daylight Panel
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ASTRA 1x1 E Daylight panel (also known as 935-4001) from Litepanels builds on the legacy of the original 1x1 fixture, which revolutionized the lighting industry. This innovative daylight model was years in the making, with every design element of this next generation panel being meticulously crafted. Following the Litepanels tradition of a one square foot form factor, the ASTRA series is designed with select premium quality, high CRI, surface mount LEDs and paired with custom designed TIR optics. These tightly binned LEDs and fine-tuned optics provide the ASTRA 1x1 with superior color reproduction and a light output that is up to four times brighter than traditional LED panels. This model offers traditional 1x1 panel intensities with the benefits of the modular infrastructure of the Astra 1x1 family.

Astra 1x1 E Daylight Panel Includes:

  • Astra 1x1 EP Daylight fixture
  • Manual Yoke
  • Power Supply
  • US & EU Power Cords

Astra 1x1 E Daylight Panel Features:

  • Output is comparable with the original 1x1 LED panel:
    • High performance LEDs with custom paired optics
    • Higher intensity = Longer throw = Wider effective beam spread
  • Superior color reproduction:
    • High color rendition (CRI)
    • Accurate color temperatures
  • Efficient thermal management with user selectable dual cooling mode:
    • Completely silent passive cooling mode
  • Ultra-smooth dimming from 100% to 0:
    • Flicker-free at any frame rate or shutter angle
  • Flexible, modular concept:
    • Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX512 protocol (Additional module options under development)
    • Optional yoke mounted Gold Mount® or V-Mount battery plates
  • Modern fixture design:
    • Easily identifiable and ergonomic manual controls for dimming, color, and power status
    • Aluminum I-beam core construction to provide maximum durability and superior thermal management
    • Aluminum accessory mounting points and lens/filter rails
    • End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
    • Durable, industry standard 3-pin XLR locking power connector
  • Custom curved yoke design:
    • Wide, unobstructed tilt range
    • Yoke mounted power supply and optional battery plates with dual integrated cable guides
    • Removable TVMP connector for flexible mounting options
    • Two alternate ¼-20 mounting points

Astra 1x1 E Daylight Panel Specifications:

  • Max. power draw (Watts): 27
  • Comparative output: 200W HMI
  • Beam angle (degrees): 44
  • Remote control: Yes
  • Optics: Custom TIR Lens
  • Weight: 7 lbs
  • Power supply: AC/DC 120-240VAC
  • Fixture type: Panel Fixture
  • Color temperature: Daylight



Astra 1x1 Nanoptic Lens Set with Bag
