Kramer Yarden 6-OD
6.5", On-Wall Stereo Speaker, White

OUR PART #:  YARDEN-6-OD-W

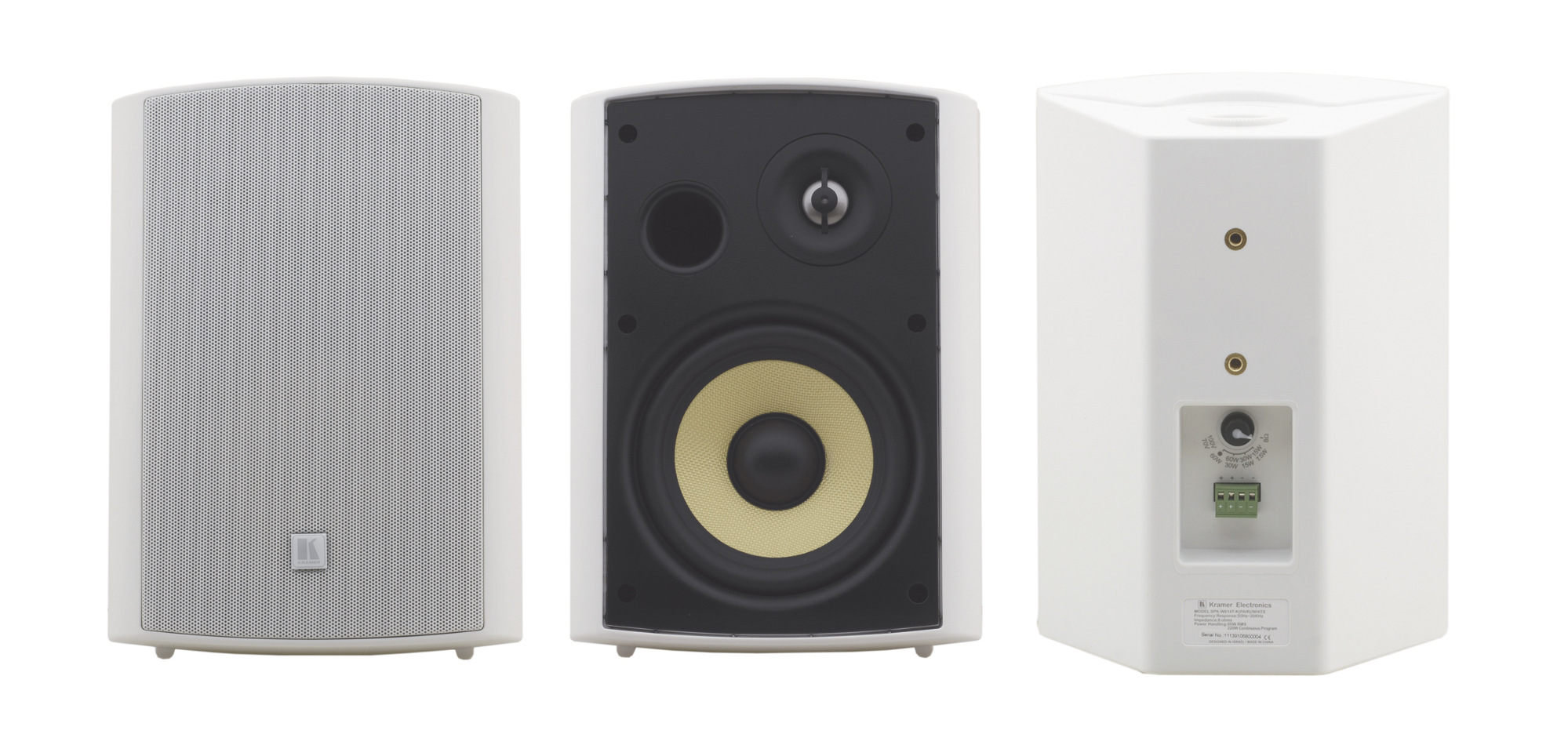

The Kramer Yarden 6-OD High Performance On-wall Stereo Speaker features a Kevlar(R) woofer, dual pivoting titanium tweeters...
Learn More
Our Price: $184.00
List Price: $230.00
You save 20%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer Yarden 6-OD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer Yarden 6-OD High Performance On-wall Stereo Speaker features a Kevlar(R) woofer, dual pivoting titanium tweeters, 2nd level cross-over design and multi-tap power transformer for selecting 8Ohms (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

Applications:

  • Conference rooms
  • Boardrooms
  • Classrooms
  • Hotels
  • Restaurants

Kramer Yarden 6-OD Includes:

  • Mounting bracket (including 2 knobs and 2 mounting screws)

Kramer Yarden 6-OD Features:

  • Woofer: 6.5” Kevlar(R) cone
  • Tweeter: Two pivoting 1” titanium domes
  • Impedance: 8Ohms
  • Stereo/Mono Switch Selector
  • Power Handling: 2 x 30W RMS, 2 x 80W continuous program
  • Transformer Taps: 70V: 20W/10W/5W/2.5W/1.25W/Off (Lo-Z); 100V:20W/10W/5W/2.5W/Off (Lo-Z)

Kramer Yarden 6-OD Specifications:

  • Frequency Response: 65Hz to 20kHz @-10dB, 80Hz to 20kHz @±3dB
  • Woofer: 6.5” (166mm) Kevlar(R) with rubber surround
  • Tweeter: 2 0.8” (20mm) pivoting titanium domes
  • Impedance: 8Ohms (transformer tap in off position)
  • Transformer Taps: 70V – 20W/10W/5W/2.5W/1.25W/Off (Lo-Z), 100V – 20W/10W/5W/2.5W/Off (Lo-Z)
  • Sensitivity: 84dB SPL, 1W @1m
  • Max SPL: Continuous: 99dB, peak: 102dB
  • Power Handling: 2 x 30W RMS, 2 x 80W continuous program
  • Crossover Frequency: 2.6kHz
  • Directivity Factor (Q): 5.3 averaged 1kHz to 10kHz
  • Directivity Index (DI): 7.4dB averaged 1kHz to 10kHz
  • Input Connectors: Terminal blocks
  • Materials: Frame, aluminum grill, steel brackets; ABS cabinet
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • Weight: 2.85kg (6.28lbs) approx.
  • Weight with Mounting Kit: 3kg (6.61lbs) approx.
  • Shipping Weight: 3.7kg (8.16lb) approx.
  • Dimensions: 21.5 cm x 19.4 cm x 30.1 cm (8.5” x 7.6” x 11.9”), W, D, H
  • Dimensions with Mounting Brackets: 21.5cm x 22.5cm x 30.1cm (8.5” x 8.9” x 11.9”), W, D, H
  • Installation Clearance:
    • Front panel to wall (with mounting bracket): 22.7cm (8.9”)
    • Back panel to wall (with mounting bracket): 3.8cm (1.5”)
