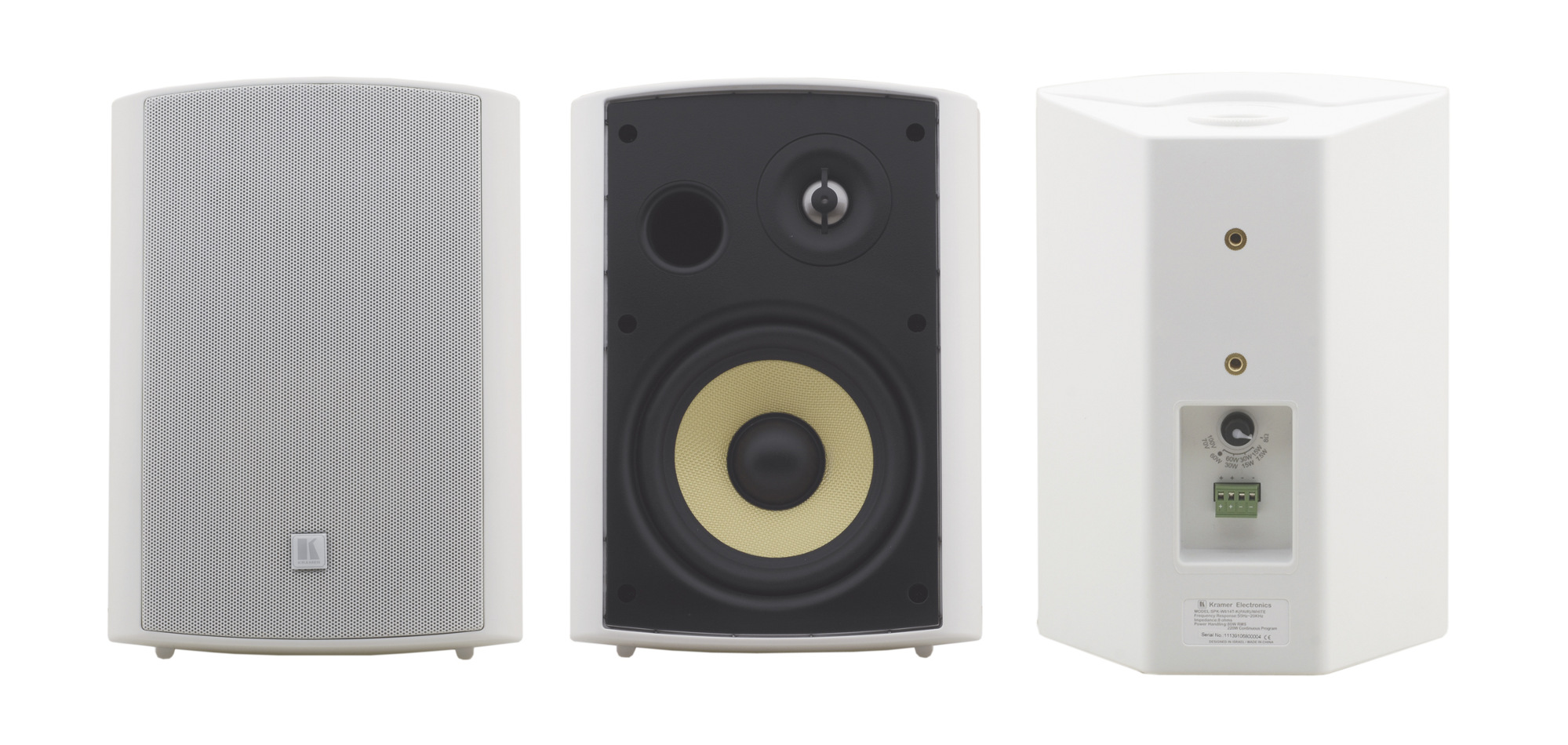

Kramer Yarden 6-O-W Pair of 6" On-Wall 2-Way Speakers, White

OUR PART #: YARDEN-6-O-W MFR #: 60-000063

Copied to clipboard

The Kramer Yarden 6-O High Performance On-wall Speaker features a Kevlar(R) woofer... ...Read more

Kramer Yarden 6-O-W Pair Of 6" On-Wall 2-Way Speakers, White Image 1
Kramer Yarden 6-O-W Pair Of 6" On-Wall 2-Way Speakers, White
Our Price: $480.00
List Price: $600.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Kramer Yarden 6-O High Performance On-wall Speaker features a Kevlar(R) woofer, 2nd level cross-over design and multi-tap power transformer for selecting 8Ohms (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

Applications:

  • Conference rooms
  • Boardrooms
  • Classrooms
  • Hotels
  • Restaurants

Kramer Yarden 6-O Includes:

  • 2 mounting brackets (including 4 knobs and 4 mounting screws)

Kramer Yarden 6-O Features:

  • Woofer: 6.5” Kevlar(R) cone
  • Tweeter: 1” titanium dome
  • Impedance: 8Ohms
  • Power Handling: 80W RMS, 220W continuous program
  • Transformer Taps: 70V: 60W /30W/15W/7.5W/Off (Lo-Z); 100V: 60W/30W/15W/Off (Lo-Z)

Kramer Yarden 6-O Specifications:

  • Frequency Response: 65Hz to 20kHz @-10dB, 83Hz to20kHz @±3dB
  • Woofer: 6.5” (166mm) Kevlar(R) with rubbersurround
  • Tweeter: 1” (25.4mm) titanium
  • Impedance: 8Ohms (transformer tap in off position)
  • Transformer Taps: 70V – 60W/30W/15W/7.5W/Off(Lo-Z), 100V – 60W/30W/15W/Off (Lo-Z)
  • Sensitivity: 86dB SPL, 1W@1m
  • Max SPL: Continuous: 104dB, peak: 107dB
  • Power Handling: 80W RMS, 220W continuous program
  • Crossover Frequency: 1.9kHz
  • Directivity Factor (Q): 7.1 averaged 1kHz to10kHz
  • Directivity Index (DI): 8.5dB averaged 1kHz to10kHz
  • Input Connectors: Terminal blocks
  • Materials: Frame, aluminum grill, steel bracketsand ABS cabinet
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to158°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • Weight Per Single Speaker: 3.93kg (8.66lb) approx.
  • Weight with Mounting Kit: 4.18kg (9.22lb) approx.
  • Shipping Weight (For Pair): 9kg (19.84lb) approx.
  • Dimensions: 21.5cm x 19.4cm x 30.1cm (8.5” x 7.6”x 11.9”), W, D, H
  • Dimensions with Mounting Brackets: 21.5cm x22.5cm x 30.1cm (8.5” x 8.9” x 11.9”), W, D, H
  • Installation Clearance:
    • Front panel to wall (with mounting bracket): 22.7cm (8.9”)
    • Back panel to wall (with mounting bracket): 3.8cm (1.5”)
  • Options: BCP-2S speaker cable
