Product Overview

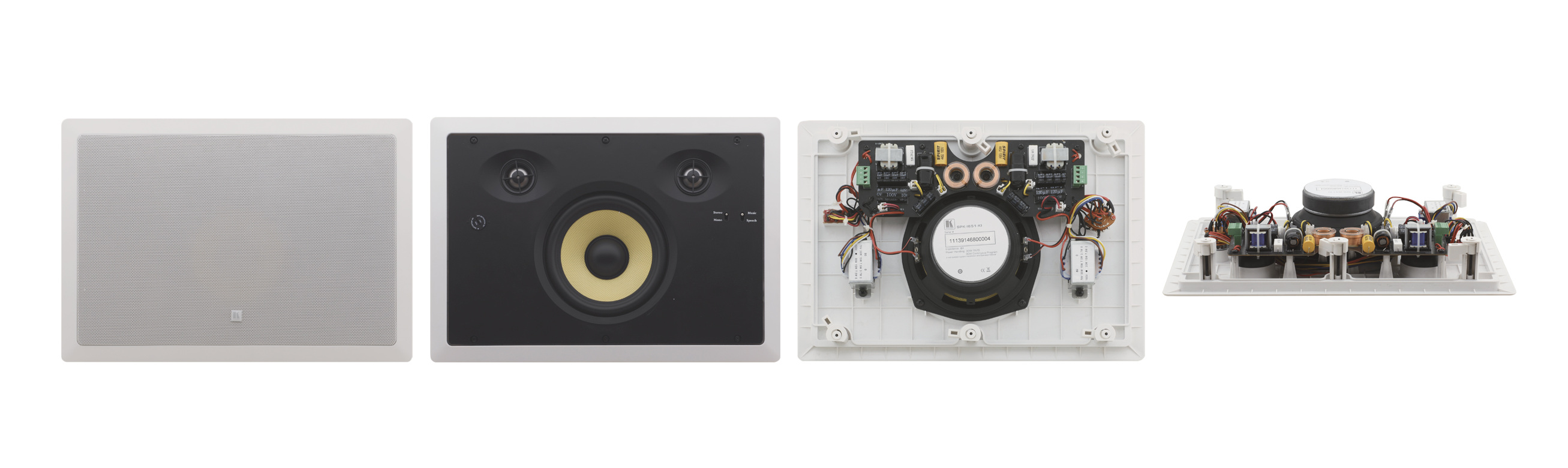

The Kramer Yarden 6-ID High Performance In-Wall Stereo Speaker features a Kevlar(R) woofer, dual pivoting titanium tweeters, speech mode to improve intelligibility, 2nd level cross-over design and multi-tap power transformer for selecting 8Ohms (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.
Kramer Yarden 6-ID Features:
- Woofer: 6.5” Kevlar(R) cone
- Tweeters: Two pivoting 1” titanium domes
- Impedance: 8O
- Speech/Music Selector Switch
- Stereo/Mono Selector Switch
- Power Handling: 0W RMS, 80W continuous program
- Transformer Taps: 70V – 30W/15W/7.5W/3.7W/Off (Lo-Z), 100V –30W/15W/7.5W/Off (Lo-Z)
Kramer Yarden 6-ID Specifications:
- Frequency Response: 40Hz to 20kHz @ -10dB, 60Hz to 20kHz @ ±3dB
- Woofer: 6.5” (166mm) Kevlar(R) with rubber surround
- Tweeter: 2 pivoting 1” (25mm) titanium
- Impedance: 8Ohms (transformer tap in off position)
- Transformer Taps: 70V – 30W/15W/7.5W/3.7W/Off (Lo-Z), 100V – 30W/15W/7.5W/Off (Lo-Z)
- Sensitivity: 85dB SPL 1W @1m
- Max SPL: Continuous: 100dB, peak: 103dB
- Power Handling: 30W RMS, 80W continuous program
- Crossover Frequency: 2.3kHz
- Directivity Factor (Q): 7.5 averaged 1kHz to 10kHz
- Directivity Index (DI): 8.8dB averaged 1kHz to 10kHz
- Input Connectors: Terminal blocks
- Controls: Mono/Stereo select switch, Music/Speech select switch
- Materials: Frame, aluminum grill, ABS cabinet
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: -40° to +70°C (-40° to 158°F)
- Humiditiy: 10% to 90%, RHL non-condensing
- Weight: 3.03kg (6.68lbs) approx.
- Shipping Weight: 3.85kg (8.49lbs) approx.
- Dimensions: 48cm x 28cm x 8.8cm (18.9” x 11.02” x 3.46”), W, D, H
- Installation Clearance: Mounting depth: 8.3cm (3.27")
