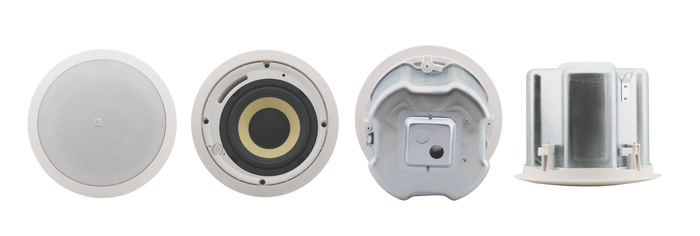

Kramer YARDEN-6-CH(PAIR) 6.5" Directional Closed-Back 2-Way Ceiling Speakers

The Kramer Yarden 6-CH High-performance Directional Closed-Back speaker features improved speech intelligibility and musical clarity in high ceiling rooms and venues with difficult acoustics. The speaker focuses specific frequencies and creates a narrow listening area directly under the speaker. Kramer's Yarden 6-CH features a multi-tap power transformer for selecting 8Ohms (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

Applications:

• Conference rooms
• Boardrooms
• Classrooms
• Hotels
• Restaurants

Kramer Yarden 6-CH Includes:

• ceiling mounting kit
• cutout template
• safety cord attached to grill
• user manual
• installation bracket

Kramer Yarden 6-CH Features:

• Type: 2-way coaxial speaker
• Woofer: 6.5” Kevlar(R) cone
• Tweeter: 1" PEI compression driver
• Impedance: 8Ohms
• Power Handling: 30W RMS, 80W Continuous program
• Transformer Taps: 70V – 60W/30W/15W/7.5W/Off (Lo-Z), 100V – 60W/30W/15W/Off (Lo-Z)
• UL 1480 & 2043 Approved

Kramer Yarden 6-CH Specifications:

• Description: 2-way high-power closed-back ceiling speakers
• Frequency Response: 75Hz to 20kHz @-10dB, 100Hz to 20kHz @±3dB
• Woofer: 6.5” (165mm) Kevlar(R) with rubber surround
• Tweeter: 1” (25mm) PEI compression driver
• Impedance: 8Ohms (transformer tap in off position)
• Transformer Taps: 70V – 60W/30W/15W/7.5W/Off (Lo-Z), 100V – 60W/30W/15W/Off (Lo-Z)
• Sensitivity: 88dB SPL 1W @1m
• Max SPL: Continuous: 106dB, peak: 109dB
• Power Handling: 60W RMS, 170W continuous program
• Crossover Frequency: 4.9kHz
• Coverage Angle: 105°
• Directivity Factor (Q): 7.48 averaged 1kHz to 10kHz
• Directivity Index (DI): 8.7dB averaged 1kHz to 10kHz
• Input Connector: Terminal block
• Materials: ABS bezel, aluminum grill, metal back can
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: -40° to +70°C (-40° to 158°F)
• Humidity: 10% to 90%, RHL non-condensing
• Weight Per Single Speaker: 4.5kg (9.9lbs) approx.
• Shipping Weight (For Pair): 11.4kg (25.1lbs) approx.
• Dimensions:
  • External diameter: 25.1cm (9.88")
  • Cutout diameter: 22cm (8.66")
• Installation Clearance: Mounting depth: 19.6cm (7.7”)
