Product Overview

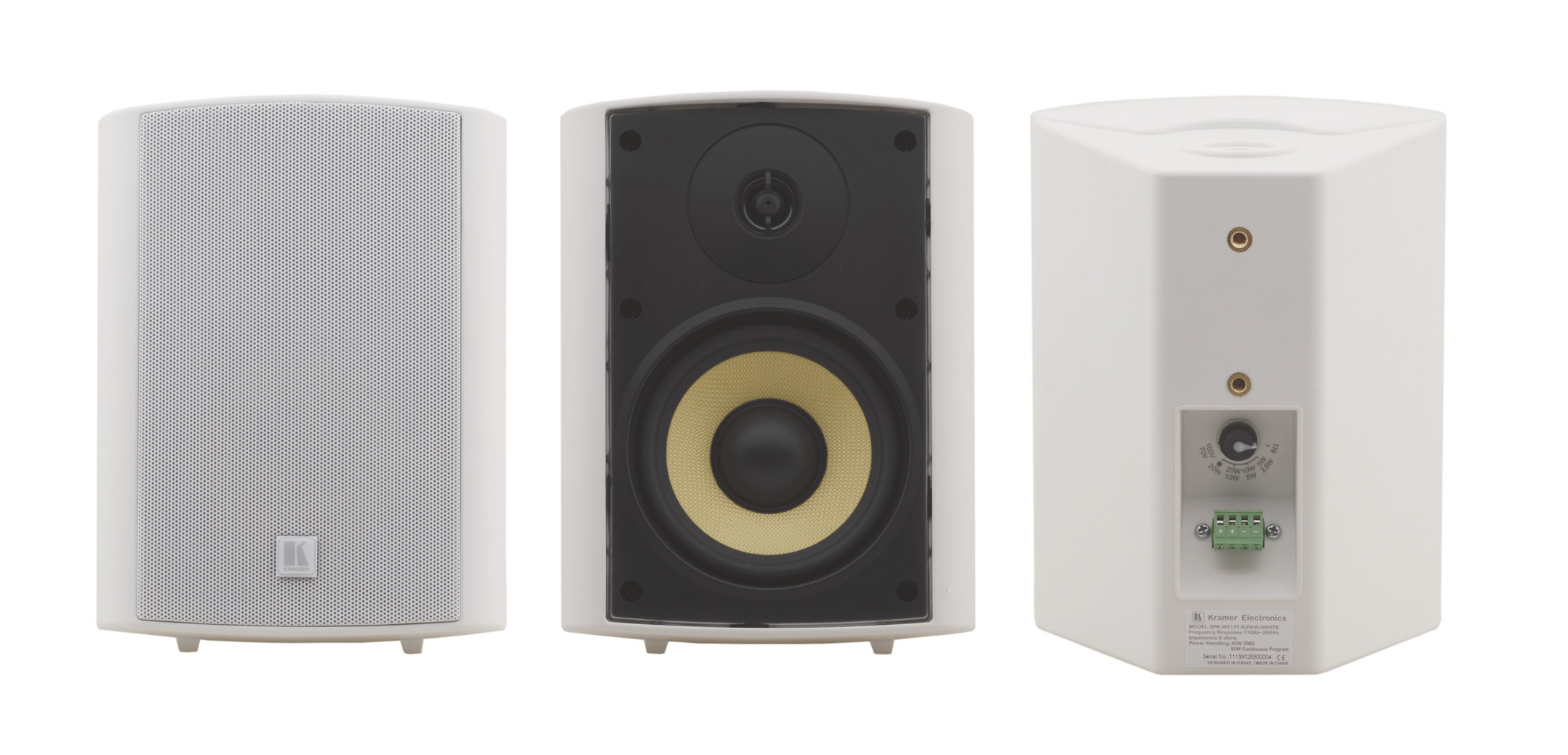

The Kramer Yarden 5-O High Performance On-Wall Speaker features a Kevlar(R) woofer, 2nd level cross-over design and multi-tap power transformer for selecting 8Ohms (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.
Applications:
- Conference rooms
- Boardrooms
- Classrooms
- Hotels
- Restaurants
Kramer Yarden 5-O Includes:
- 2 mounting brackets (including 4 knobs and 4 mounting screws)
Kramer Yarden 5-O Features:
- Woofer: 5.25” Kevlar(R) cone
- Tweeter: 0.5” Mylar dome
- Impedance: 8Ohms
- Power Handling: 30W RMS, 80W continuous program
- Transformer Taps: 70V: 20W/10W/5W/2.5W/Off (Lo-Z); 100V: 20W/10W /5W/Off(Lo-Z)
Kramer Yarden 5-O Specifications:
- Frequency Response: 80Hz to 20kHz @-10dB, 100Hzto 20kHz @±3dB
- Woofer: 5.25” (133mm) Kevlar(R) with rubbersurround
- Tweeter: 0.5” (13mm) Mylar
- Impedance: 8Ohms (transformer tap in off position)
- Transformer Taps: 70V – 20W/10W/5W/2.5W/Off(Lo-Z), 100V – 20W/10W/5W/Off (Lo-Z)
- Sensitivity: 88dB SPL, 1W @1m
- Max SPL: Continuous:101dB, peak: 104dB
- Power Handling: 30W RMS, 80W continuous program
- Crossover Frequency: 9kHz
- Directivity Factor (Q): 4 averaged 1kHz to 10kHz
- Directivity Index (DI): 6dB averaged 1kHz to10kHz
- Input Connectors: Terminal blocks
- Materials: Frame, aluminum grill, steel bracketsand ABS cabinet
- Operating Temperature: 0° to +40°C (32° to104°F)
- Storage Temperature: -40° to +70°C (-40° to158°F)
- Humidity: 10% to 90%, RHL non-condensing
- Weight Per Single Speaker: 2.15kg (4.7lbs) approx.
- Weight with Mounting Kit: 2.3kg (5.1lbs) approx.
- Shipping Weight (For Pair): 5.3kg (11.7lbs) approx.
- Dimensions:
- 18.4cm x 16.7cm x 24.5cm (7.24” x 6.6” x 9.65”), W, D, H.
- With mounting brackets: 18.4cm x 19.0cm x 24.5cm (7.24” x 7.5” x 9.65”), W, D, H
- Installation Clearance:
- Front panel to wall (with mounting bracket): 18.7 cm (7.4”)
- Back panel to wall (with mounting bracket): 2.4 cm (0.9”)
- Options: BCP-2S speaker cable
