Product Overview

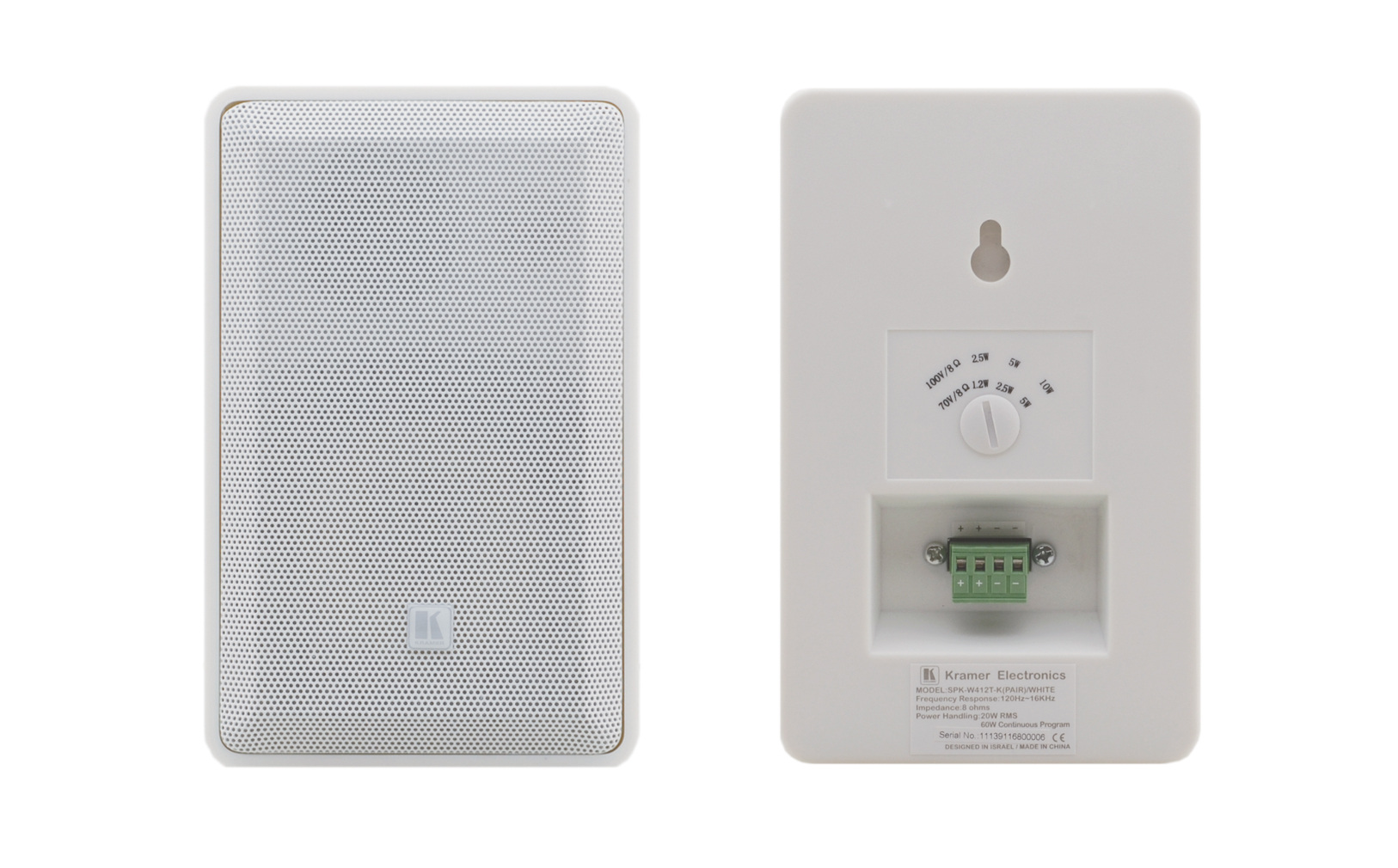

The Kramer Yarden 4-O Compact High Performance On-Wall Speaker features a Kevlar(R) woofer, 2nd level cross-over design and multi-tap power transformer for selecting 8Ohms (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.
Applications:
- Conference rooms
- Boardrooms
- Classrooms
- Hotels
- Restaurants
Kramer Yarden 4-O Includes:
- 2 mounting brackets (including 4 knobs and 4 mounting screws)
Kramer Yarden 4-O Features:
- Woofer: 4” Kevlar(R) cone
- Tweeter: 0.5” Mylar dome
- Impedance: 8Ohms
- Power Handling: 20W RMS, 60W continuous program
- Transformer Taps: 70V: 10W/5W/2.5W/Off (Lo-Z): 100V: 5W/2.5W/1.2W/Off(Lo-Z)
Kramer Yarden 4-O Specifications:
- Frequency Response: 80Hz to 20kHz @-10dB, 100Hzto 20kHz @±3dB
- Woofer: 4” (102mm) Kevlar(R) with rubbersurround
- Tweeter: 0.5” (13mm) Mylar
- Impedance: 8Ohms (transformer tap in off position)
- Transformer Taps: 70V – 5W/2.5W/1.2/Off (Lo-Z),100V – 10W/5W/2.5W/Off (Lo-Z)
- Sensitivity: 85dB SPL 1W @1m
- Max SPL: Continuous: 95dB, peak: 98dB
- Power Handling: 20W RMS, 60W continuous program
- Crossover Frequency: 6kHz
- Directivity Factor (Q): 3.8 averaged 1kHz to10kHz
- Directivity Index (DI): 5.6dB averaged 1kHz to10kHz
- Input Connectors: Terminal block connectors
- Materials: Frame, aluminum grill, steel brackets and ABS cabinet
- Operating Temperature: 0° to +40°C (32° to104°F)
- Storage Temperature: -40° to +70°C (-40° to158°F)
- Humidity: 10% to 90%, RHL non-condensing
- Weight Per Single Speaker: 1.2kg (2.65lbs) approx.
- Weight with Mounting Kit: 1.6kg (3.5lbs) approx.
- Shipping Weight (For Pair): 3.2kg (7.05lbs) approx.
- Dimensions: 11.9cm x 11.1cm x 18.8cm (4.7” x4.4” x 7.4”), W, D, H
- Dimensions with Mounting Brackets: 11.9cm x13.6cm x 21.9cm (4.7” x 5.4” x 8.6”), W, D, H
- Installation Clearance:
- Front panel to wall (with mounting bracket): 15.5cm (6.1”)
- Back panel to wall (with mounting bracket): 4.3cm (1.7”)
- Options: BCP-2S speaker cable
