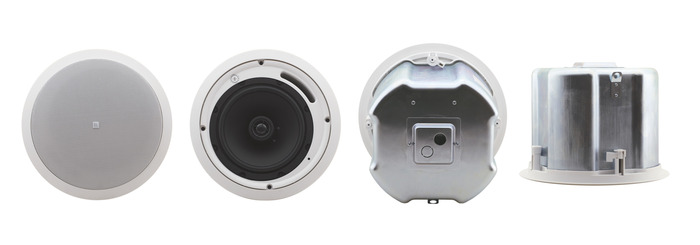

Kramer GALIL-8-C(PAIR) 8" Closed-Back 2-Way Ceiling Speakers

The Kramer Galil 8-C Closed-back Ceiling Speaker features a multi-tap power transformer for selecting 8? (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

Applications

• Conference rooms
• Boardrooms
• Classrooms
• Hotels
• Restaurants

Includes

• Installation bracket
• safety cord attached to grill
• ceiling mounting kit
• cutout template
• user manual

Features

• Type: 2-way coaxial speaker
• Woofer: 8” polypropylene cone
• Tweeter: 1” silk dome
• Impedance: 8O
• Power Handling: 64W RMS, 180W continuous program
• Transformer Taps: 70V: 64W/32W/16W/8W/4W/Off (Lo-Z); 100V: 64W/32W/16W/8W/Off (Lo-Z)
• UL 1480 & 2043 Approved

Specifications

• Frequency Response: 65Hz to 20kHz @-10dB, 85Hz to 20kHz @±3dB
• Woofer: 8” (200mm) polypropylene with rubber surround
• Tweeter: 1” (25.4mm) silk dome
• Impedance: 8? (transformer tap in off position)
• Transformer Taps: 70V – 64W/32W/16W/8W/4W/Off (Lo-Z), 100V – 64W/32W/16W/8W/Off (Lo-Z)
• Sensitivity: 89dB SPL, 1W@1m
• Max SPL: Continuous: 104dB, peak: 107dB
• Power Handling: 64W RMS, 180W continuous program
• Crossover Frequency: 6.3kHz
• Coverage Angle: 110°
• Directivity Factor (Q): 4.6 averaged 1kHz to 10kHz
• Directivity Index (DI): 6.5dB averaged 1kHz to 10kHz
• Input Connector: Terminal block
• Materials: ABS bezel, aluminum grill, metal back can
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: -40° to +70°C (-40° to 158°F)
• Humidity: 10% to 90%, RHL non-condensing
• Weight Per Single Speaker: 4.9kg (10.8lbs) approx.
• Shipping Weight (for pair): 13.6kg (30lbs) approx.
• Dimensions:
  • External diameter: 30.5cm (12")
  • Cutout diameter: 27.3cm (10.75")
• Installation Clearance: Mounting depth: 22.6cm (8.9”)
