Product Overview

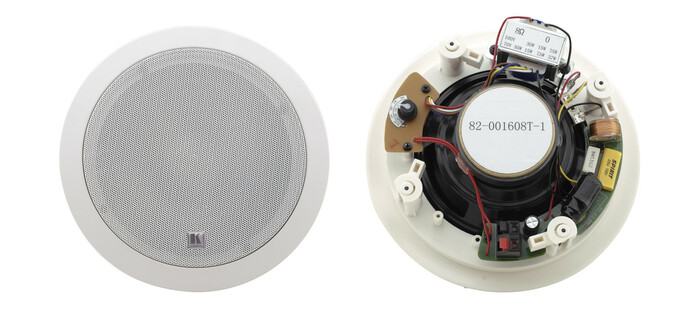

The Kramer Galil 6-CO is a pair of two-way open-back 8Ohm speakers designed for mounting in the ceiling. The speakers feature a multi-tap power transformer for selecting direct 8Ohm (bypassing the transformer) or 70V/100V power settings suitable for array installation.
Applications
- Array installations
- Conference rooms and presentation venues
- Educational classrooms and training rooms
- Hotel lobbies
Includes
- Ceiling mounting kit
- template
- user manual
Features
- Type: 2-way coaxial round open-back ceiling speaker with infinite baffle design
- Woofer: 6.5" polypropylene cone with rubber surround
- Tweeter: 0.5" Mylar
- Frequency Response: 60Hz to 20kHz
- Impedance: 8Ohms
- Sensitivity - (SPL) 87dB (1W @1m with 1kHz)
- Recommended Power - RMS 30W, 80W max
- Grill - White baffle aluminum grills
- Mounting Bracket (Optional) - SKIC-6
Specifications
- High Frequency Driver: 0.5" Mylar dome tweeter
- Low Frequency Driver: 6.5” polypropylene cone with rubber surround woofer
- Impedance: 8Ohms
- Dispersion Coverage: 120° @2kHz
- Crossover Frequency: 3kHz
- Nominal Sensitivity: 87dB SPL @1m, 1W
- Coverage Angle: 104°
- Directivity Factor (Q): 8.5 (averaged 100Hz to 10kHz)
- Directivity Index (DI): 9.2dB (averaged 100Hz to 10kHz)
- Frequency Response: 60Hz to 20kHz
- Input Power: 30W RMS, 80W continuous program
- Transformer: 70V – 3.7W/7.5W/15W/30W; 100V – 7.5W/15W/30W
- Recommended Amplifier Power: 30W
- Input Connector: Spring-type push terminal block
- Weight Per Single Speaker: 1.55kg (3.41lbs) approx.
- Shipping Weight (for pair): 4.05kg (8.91lbs) approx.
- Dimensions (OD): 23cm (9.06")
- Cutout Size (Mount Dimension): 19.5cm (7.68")
- Mount Depth: 7.5cm (2.95")
- Optional: Kramer Suspended Ceiling Speaker Mounting Kit (SKIC)
